HEXI PowerWall Home Solar Battery - the ultimate energy storage solution for all your solar power needs. This cutting-edge 51.2v 100Ah Lithium Iron Phosphate (LiFePO4) battery reliability and performance, ensuring your power supply remains uninterrupted.
5kwh-15kW delivery, with peak power 10.5kW (10 sec.) & 15.4kW (3 sec.)
Constant discharge current – 100A
Over 4000 cycles at 80% DOD with an 82.6Mwh lifetime production
Product advantages
High safety: Compared with other lithium-ion batteries, LiFePO4 battery has higher safety and is less likely to cause accidents such as combustion or explosion.
Long cycle life: 5kwh 100ah LiFePO4 battery has a longer lifespan and can be charged and discharged thousands of times.
Good high-temperature performance: LiFePO4 battery has a wide temperature range and strong adaptability, and it can work normally even in high-temperature environments.
Environmentally friendly and pollution-free: LiFePO4 battery does not contain heavy metal elements, has no pollution, and meets environmental protection requirements.
Installation steps-Fix the battery
Install the battery vertically in the designated position and secure it with a bracket or bolts.
Keep the bottom of the battery in firm contact with the ground to prevent accidental tipping.

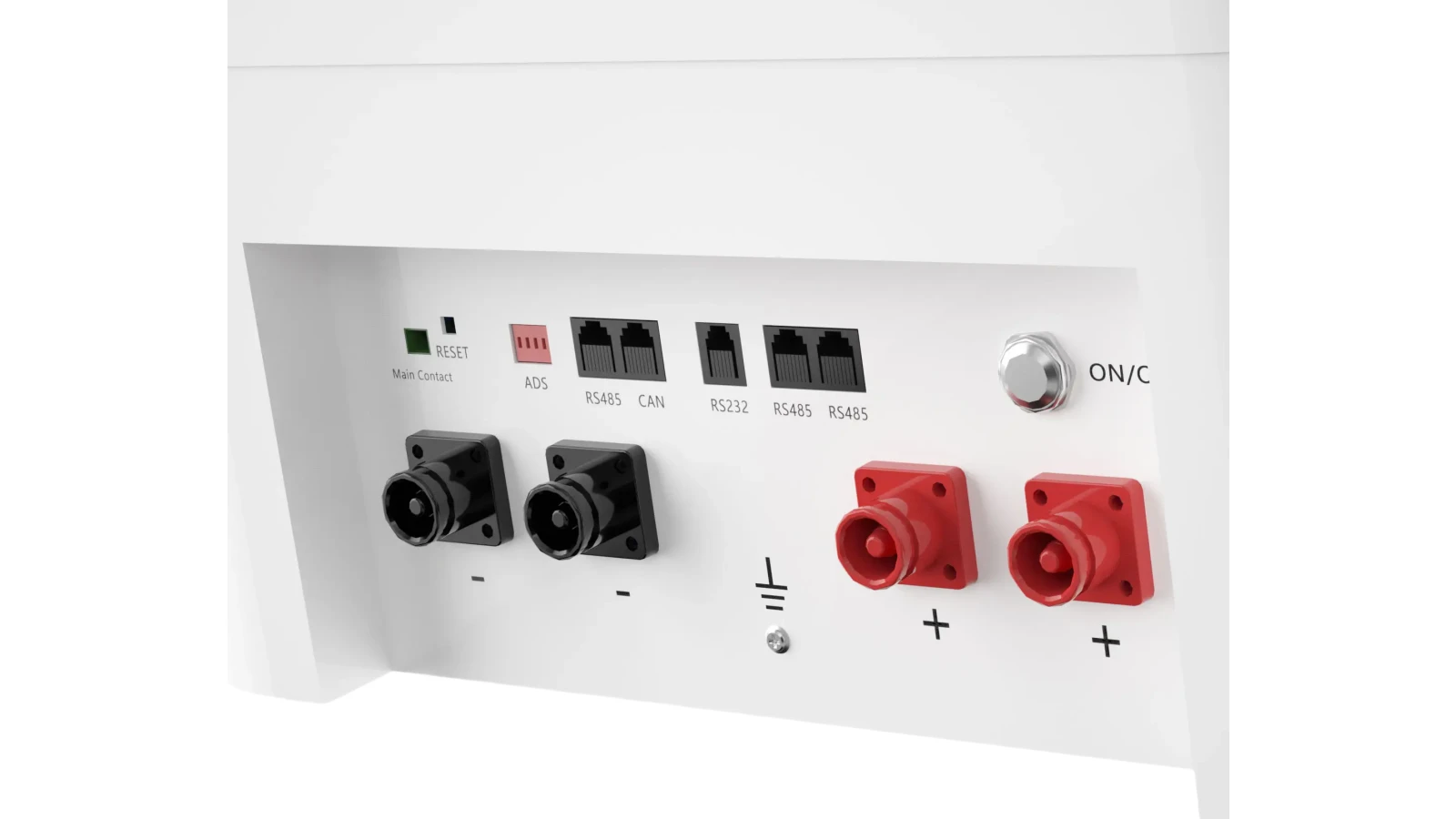

Connect the cable
Use high-quality cables to connect the positive and negative poles of the battery, and ensure that the connection is firm and not loose.
Follow the connection order of "battery first, then inverter" and connect correctly according to the polarity.
Inverter matching
Set the correct operating parameters according to the inverter model, such as voltage range, charge and discharge power, etc.
Ensure that the battery and inverter communicate normally (such as through CAN or RS485 communication protocol).
Operation-Start the system
Press the start button of the inverter or battery pack to ensure that the battery is in working state.
Check the inverter and battery status indicators to ensure normal operation.
Check the App or monitoring system regularly to check key parameters such as battery capacity, voltage and temperature.
Avoid long-term operation when the power is too low or too high. It is recommended to keep the battery power between 20%-80% to extend the life-Shutdown and maintenance
Before shutting down, turn off the load equipment first, and then turn off the inverter and battery.
Check the battery connection parts for looseness once a month and clean the dust.
Notes
Do not expose the battery to direct sunlight or high humidity.
Do not disassemble or modify the internal components of the battery without authorization.
When not in use for a long time, charge the battery to 50%-60% and store it in a dry and ventilated place.
If any abnormality occurs (such as leakage, overheating, etc.), disconnect the device immediately and contact after-sales support.
1. Unique Design: New wall mount design

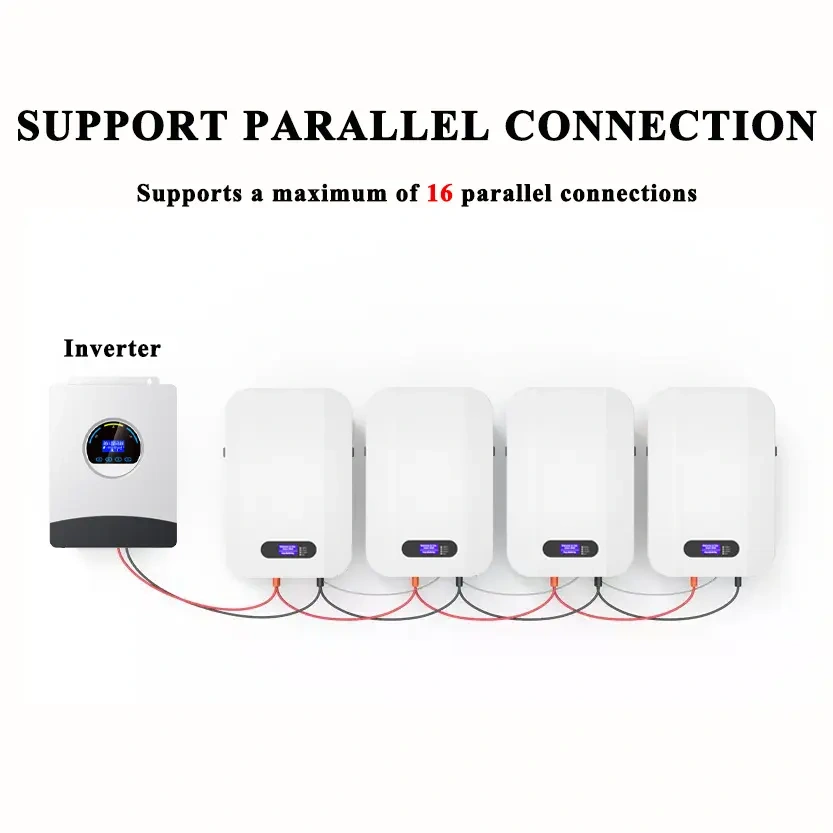

2. Flexible Capacity: Max.15pcs in Parallel to extend capacity
3. Safe &Reliable: Lithium Iron Phosphate (LFP) Cell

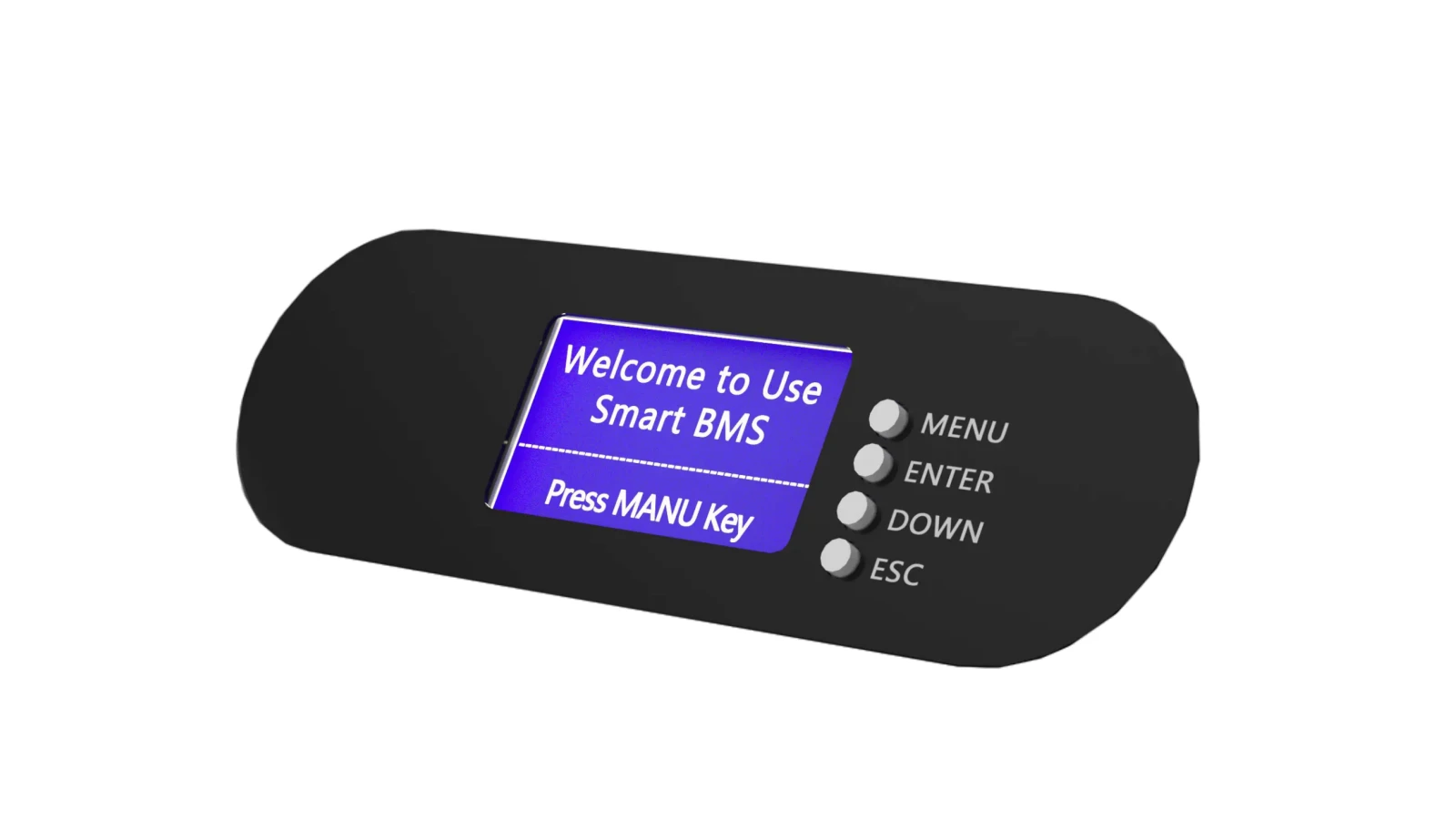

4. LED Display: SOC, Battery Status
5. Easy Installation: Quick plug in +/- and parallel connection
6. Certificates: CB, IEC62619, UL1973, UKCA, CE-EMC, CE, GPSD, EN62619 ; UN38.3, MSDS
Precautions：
Do not expose the battery to direct sunlight or high humidity.
It is forbidden to disassemble or modify the internal components of the battery without authorization.
When not in use for a long time, charge the battery to 50%-60% and store it in a dry and ventilated place.
If any abnormality occurs (such as leakage, overheating, etc.), please disconnect the device immediately and contact after-sales support.
