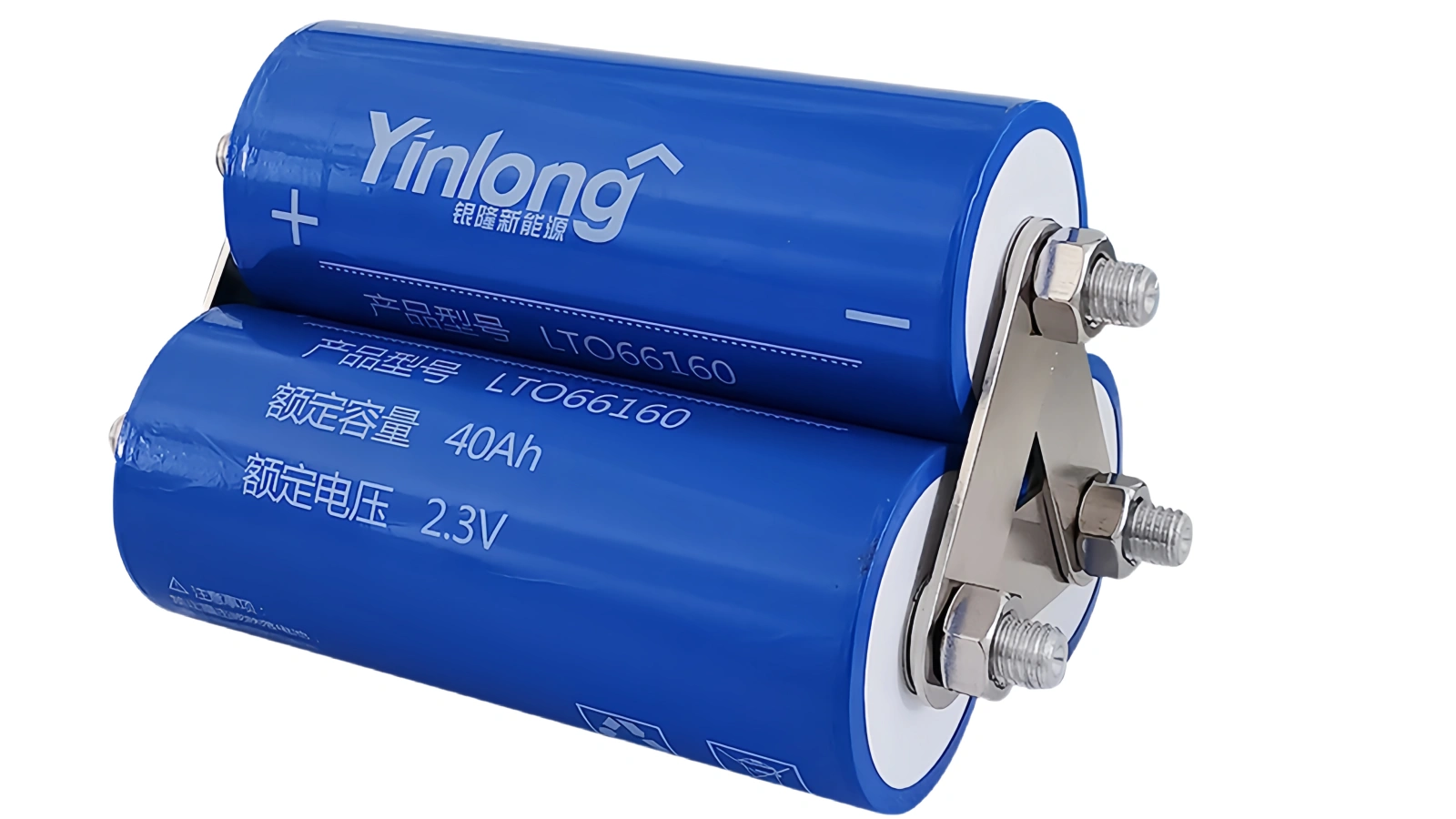

Yinlong 2.3V 40Ah LTO Battery Cell – Lithium Titanate 66160
Thumbnail 2 Thumbnail 3 Thumbnail 4

Yinlong 2.3V 40Ah LTO Battery Cell – Lithium Titanate 66160

  • Fast Charging
  • LTO Battery 25000 Life-Span
  • High Charge/Discharge Capability
  • Designed With Safety-First
  • 60℃-50℃ Temperature Ranges
  • OEM/ODM12V&24V LTO battery pack
Email: ceo@hxcells.com WhatsApp: +8615889750570
Download PDF

Certifications:

Certification 1 Certification 2 Certification 3
LTO Batteries
Our fast-charging Lithium-Titanate batteries are designed to function reliably even in the most adverse temperature conditions.  With a remarkable operational life-span of up to 30 years, the batteries are built to provide long-lasting performance.
High efficiency cycle life: LTO batteries can provide longer service life, especially suitable for occasions with frequent charge and discharge.
High efficiency: LTO batteries can maintain stable output performance in multiple charge and discharge cycles, suitable for combination with renewable energy such as solar energy and wind energy.
High and low temperature adaptability: LTO batteries can operate in extreme climatic conditions and are particularly suitable for energy storage systems in high and low temperature environments.
Long life: In UPS systems, long charge and discharge cycles are very common, and the high cycle life of LTO batteries ensures the reliability and cost-effectiveness of the system.
High safety: The chemical characteristics of LTO batteries reduce the risk of fire and explosion, especially suitable for environments with high safety requirements.
Ships and water vehicles
LTO batteries also have certain applications in ships and water vehicles, especially those requiring quick start-up and frequent start-stop:
Fast charging and high power output: Compared to traditional lead-acid batteries, LTO batteries provide higher power density for fast starts and rapid acceleration.
Durability: LTO batteries have a strong ability to adapt to the Marine environment, can withstand harsh weather and wet environments, and extend the service life.
Military and aerospace fields
LTO batteries are also very promising in military and aerospace applications, especially for equipment requiring high reliability, long life and high safety, such as:
Drones: The fast charging nature of LTO batteries makes them ideal for use in unmanned aircraft systems, especially where rapid deployment and high frequency use are required.
High energy density devices: For military equipment, LTO batteries provide high power output and ensure stable operation over long periods of time.
Portable device
Although the energy density of LTO batteries is relatively low, it is still suitable for certain portable devices, especially those with high requirements for charging time and service life, such as:
High power portable equipment: such as handheld power tools, portable generators, medical equipment, etc.
Fast Charging
Experience the rapid charging capabilities with our cutting-edge LTO batteries and high-power chargingstations. A single cell achieves full recharge in an astonishingly brief 6 minutes, enabling electric vehicles tocharge swiftly, completing the process well under 20 minutes.
Wide Temperature Ranges
Yinlong lithium-titanate-oxide batteries boast an expansive operating temperature range from -40°C to +60°C. Excelling in both extreme cold and hot conditions, these batteries operate optimally without the necessity for any supplementary equipment to sustain their functionality.
Long LTO Battery Life-Span
Our LTO batteries feature cutting-edge "Zero-Strain-Material," meticulously crafted for an impressive lifespan of 30,000 full depth-of-discharge cycles. This durability exceeds competing lithium-ion technologies by up to six times, ensuring a remarkable lifespan of up to 30 years
High Charge/Discharge Capability
In contrast to carbon materials, LTO batteries have superior lithium ion diffusion coefficient, facilitating high-intensity charging and discharging rates. This capability not only ensures rapid charging but also enables the batteries to deliver high-power outputs tailored to meet specific demands.
Quality Safety
Our LTO cells, lacking a Solid Electrolyte Interphase (SEI) layer, has exceptional safety and resilience and canwithstand cutting or puncturing.  Rigorous heat resistance tests confirms that our battery cells can endureexposure to flames for an impressive 48 minutes before any risk of explosion.  For a visual

Leave me message

Item
LTO 40AH BATTERY
Brand model
LTO 66160
Standard voltage
3.7V
Standard capacity
30Ah 35Ah 40Ah 45Ah
Charge and discharge
10C

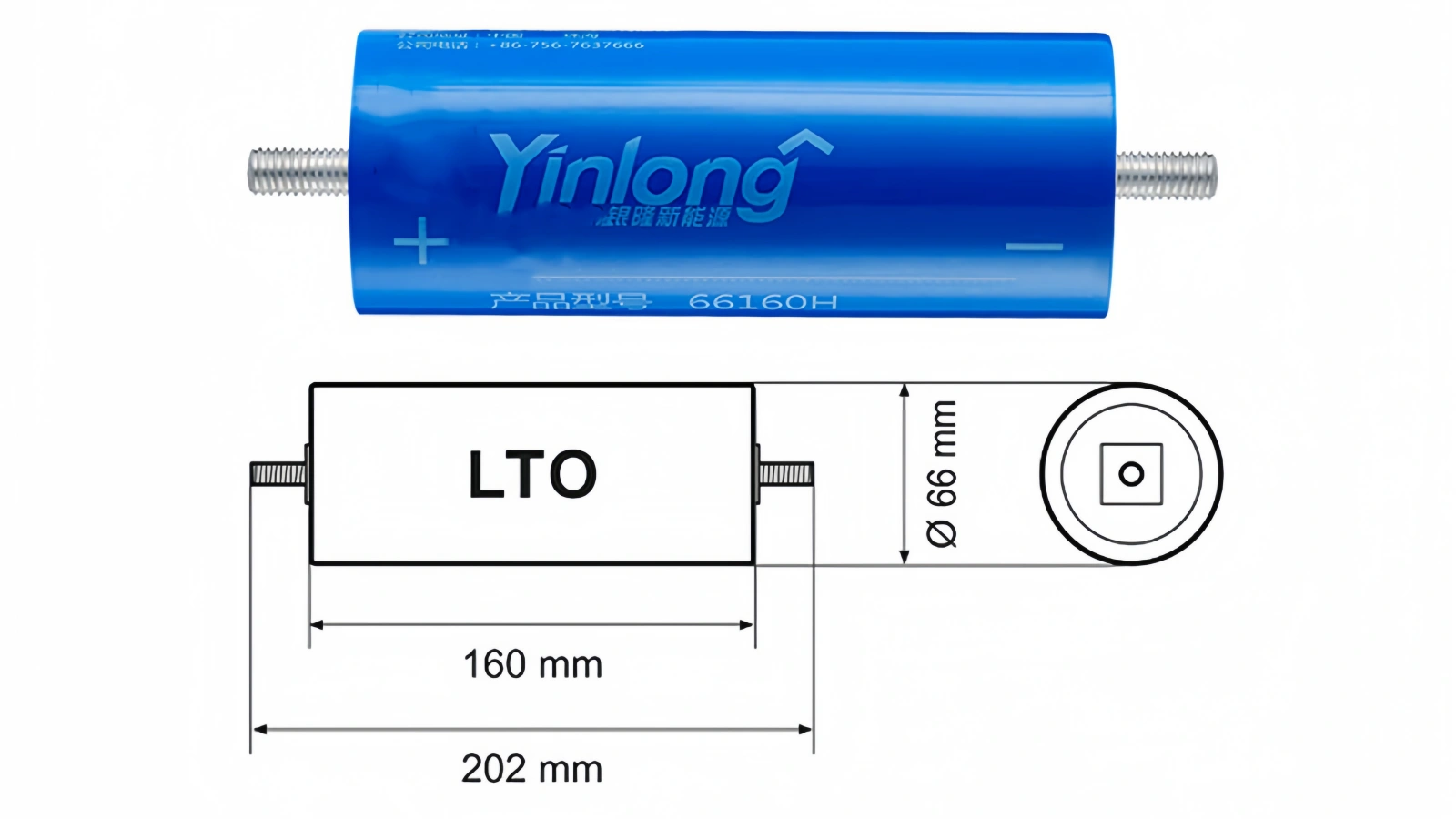

Size
6.6*16cm
nternal resistance
≤20mΩ
Weight
1.22kg±3g
Cycle
25000
Operating temperature
-20°C~60°C
Application
General electronics, electronic toys, small household appliances

Leave me message

Q1. What's the warranty of HEXI LTO 66160 40Ah battery?

A1: 5 YEARS for LTO,  10 years for Solar panel, FREE replacement service policy


Q2. What's the lead time of Li Litium Titanate 66160 40Ah samples and bulk order?

A2: Regular Model sample lead time within 7 days, bulk order within 12 days


Q3. Are you able to customize battery?

A3: Yes, we have advanced machines, rich experiences and related expertise to customize battery from cell, battery pack, circuit board design, App communication, PCBA, 3D to housing


Q4. Why choose HEXI  Litium Titanate 66160 40Ah?

1) Long warranty period;Free Replacement
2) 100% Test Before Shipment with test report
3) 0 defective rate tolerated
4) Strong Customize&design ability,OEM/ODM/technical supported
5) One stop manufacturer from Cell to Battery Pack
6) CE/RoHS/FCC/MSDS/UN38.3/IEC62133/BIS/KC/CB and ect. certificates
7) 10 +years battery R&D and production experiences
