BMS Protection Board Selection Guide

How to choose the most suitable battery management system for your energy storage system？



When building a home energy storage system, the Battery Management System (BMS) is one of the most important components. The main function of the BMS is to monitor the status of the battery pack, including the battery voltage, temperature, charging status, etc., to ensure that the battery works safely and for a long time. Whether it is a lithium battery or a lithium titanate battery, choosing a suitable BMS protection board is the key to optimizing the performance of the energy storage system.

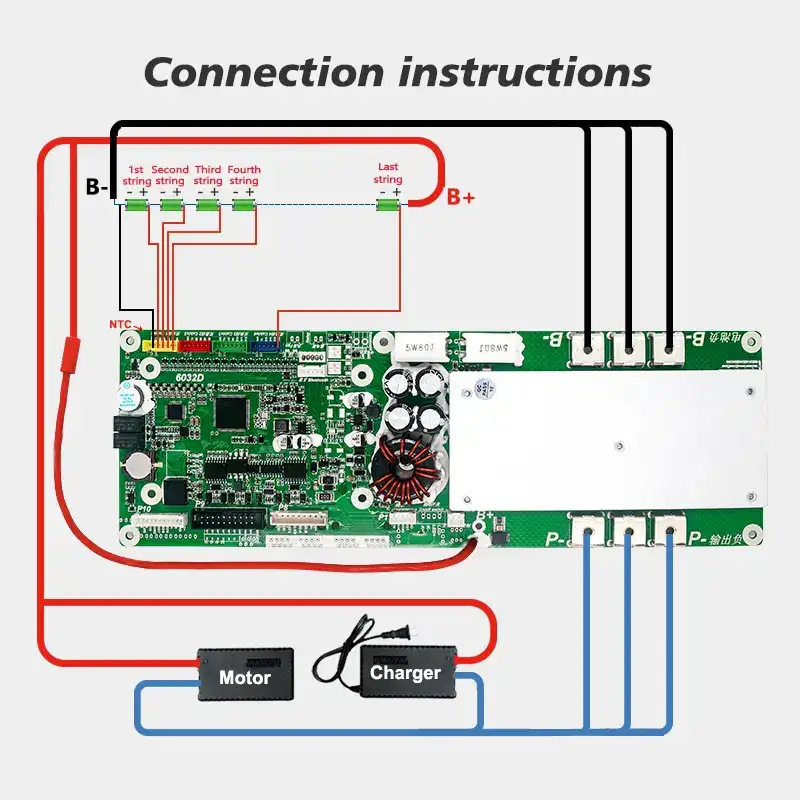

What is BMS (Battery Management System)?
BMS is the brain of the battery system. It not only ensures that each battery is within a safe operating range, but also monitors the health of the battery pack. Its main functions include:

Battery protection: prevents the battery from overcharging, over-discharging, overheating or short circuiting.
Battery balancing: ensures that the voltage of all battery cells is consistent to avoid performance problems caused by uneven capacity.
Monitoring and data feedback: provides information such as battery voltage, temperature, and charging status to help users understand the working status of the battery pack in real time.
Temperature control: monitors battery temperature to avoid damage to battery performance caused by excessively high or low temperatures.

Determine battery type and voltage requirements
When choosing a BMS, you first need to understand your battery type and voltage requirements. Different types of batteries (such as lithium batteries, lithium titanate batteries, lead-acid batteries, etc.) have different characteristics.

Lithium batteries (such as LiFePO4, NCM, LFP): Lithium batteries usually require a sophisticated BMS to manage the voltage and temperature of the single cells. The operating voltage range of lithium batteries is usually 3.2V to 4.2V (single cell), so make sure its voltage is adapted when choosing a BMS.
Lithium titanate battery (TITAN): This battery has a very high charge and discharge rate, and the BMS needs to be able to adapt to a larger current load and specific voltage requirements.
Lead-acid battery: The operating voltage of lead-acid batteries is generally 2V (single cell), and the selected BMS needs to adapt to lower voltages and larger current loads.
In addition, the choice of BMS should also match your system voltage. For example: if your energy storage system is a 48V battery pack, then the BMS should support a 48V system and adapt to 16 strings of battery cells.

Battery Pack Capacity and Current Load
When selecting a BMS, you also need to determine the BMS workload based on the battery pack capacity (Ah) and charge and discharge current (A). The rated current of the BMS must be greater than or equal to the maximum charge and discharge current of the battery pack. If the current load of the battery pack is large, it is particularly important to choose a BMS with high current handling capability.

For example:
For a small home energy storage system, the battery capacity may be around 20Ah and the charging current may be 5A-10A.
For a large energy storage system, the battery capacity may reach 200Ah or more, and the charging current may be 100A or more.
Therefore, when selecting a BMS, in addition to the voltage, pay special attention to the charge and discharge current rating of the BMS to ensure that it can meet your load requirements.

3. Battery Balancing

Voltage differences between battery cells are a common problem in energy storage systems, especially when multiple battery cells are used. Battery balancing is one of the core features of BMS, and there are usually two ways: passive balancing and active balancing.

Passive balancing: Balancing the battery voltage by consuming the energy of the over-voltage cell, suitable for low-power systems, low cost, but poor efficiency.

Active balancing: Balancing by transferring excess power in the battery pack to the cells with lower battery voltage, high efficiency, but high cost, suitable for large-capacity energy storage systems.

Choose the appropriate balancing method based on the size and budget of your energy storage system. If your system battery capacity is large, it is recommended to choose a BMS with active balancing function.

4. Protection functions and safety

One of the core tasks of BMS is to protect the battery from damage. The following are common BMS protection functions:

Overcharge protection: Prevent the battery charging voltage from exceeding the safe range (such as LiFePO4 should not usually exceed 3.65V).

Overdischarge protection: Prevent the battery voltage from dropping too low. Overdischarge will cause battery performance degradation or even damage.

Overcurrent protection: Prevent the battery from overheating or damage due to excessive current.

Overtemperature protection: Monitor battery temperature to avoid battery overheating.

Short circuit protection: If a short circuit occurs in the system, the BMS will immediately disconnect the battery from the load.

High-quality BMS usually provides multiple protection functions, which not only ensure the safety of the battery, but also effectively extend the battery life. When choosing a BMS, be sure to ensure that it has these basic safety protection functions.

5. Compatibility and communication interface
Modern BMS usually provides a variety of communication interfaces, such as CAN bus, RS485, I2C or SPI, for data exchange with other devices (such as inverters, chargers, monitoring systems, etc.). Choose a BMS that supports standard communication protocols to facilitate system integration and data management.
In addition, some BMS support remote monitoring through mobile phone APP or PC software to view the status, historical data and real-time alarm information of the battery pack. These functions are particularly important for large energy storage systems, which can help users find problems and take measures in time.

6. Temperature monitoring function
Battery packs generate heat during operation, so temperature management is crucial. Most high-end BMS are equipped with temperature sensors that can monitor the operating temperature of the battery in real time. When the temperature is too high, the BMS will take measures, such as slowing down the charging speed or stopping charging, to avoid battery damage due to overheating.
If you choose a high-power system, it is recommended to choose a BMS with multiple temperature sensors, so that the temperature of the battery pack can be monitored more accurately and appropriate measures can be taken to keep the battery within a safe temperature range.

7. Monitoring and data logging
If your energy storage system needs to be operated for a long time or needs to be managed in a refined manner, it is recommended to choose a BMS with data logging function. By recording the battery's charge and discharge data, temperature changes, current fluctuations and other information, you can better evaluate the battery's health and perform maintenance in a timely manner.
Modern BMS are usually equipped with data logs and history query functions, through which you can optimize the system's performance and extend the battery's life.

8. Brand and quality assurance
Finally, when choosing a BMS, don't ignore the brand and product quality. There are many substandard or low-quality BMS on the market, which may cause premature battery damage and even pose safety hazards. Therefore, it is crucial to choose a BMS with a well-known brand and good user reviews. Make sure the BMS you purchase has perfect after-sales service and technical support, so that you can get help and solve problems in time in case of problems.

The BMS protection board is the guarantee for the safe, stable and efficient operation of your energy storage system. By understanding key factors such as battery type, voltage requirements, battery balancing function, protection function, temperature management, etc., you can choose the most suitable BMS for your energy storage system to improve battery life and overall system efficiency. When choosing, please make sure that the BMS has comprehensive safety protection, good compatibility and remote monitoring functions to help you better manage and maintain the energy storage system.
I hope this guide can help you make wise decisions when choosing a BMS and ensure the long-term and stable operation of your energy storage system. If you have any questions or need help, please feel free to contact us!
