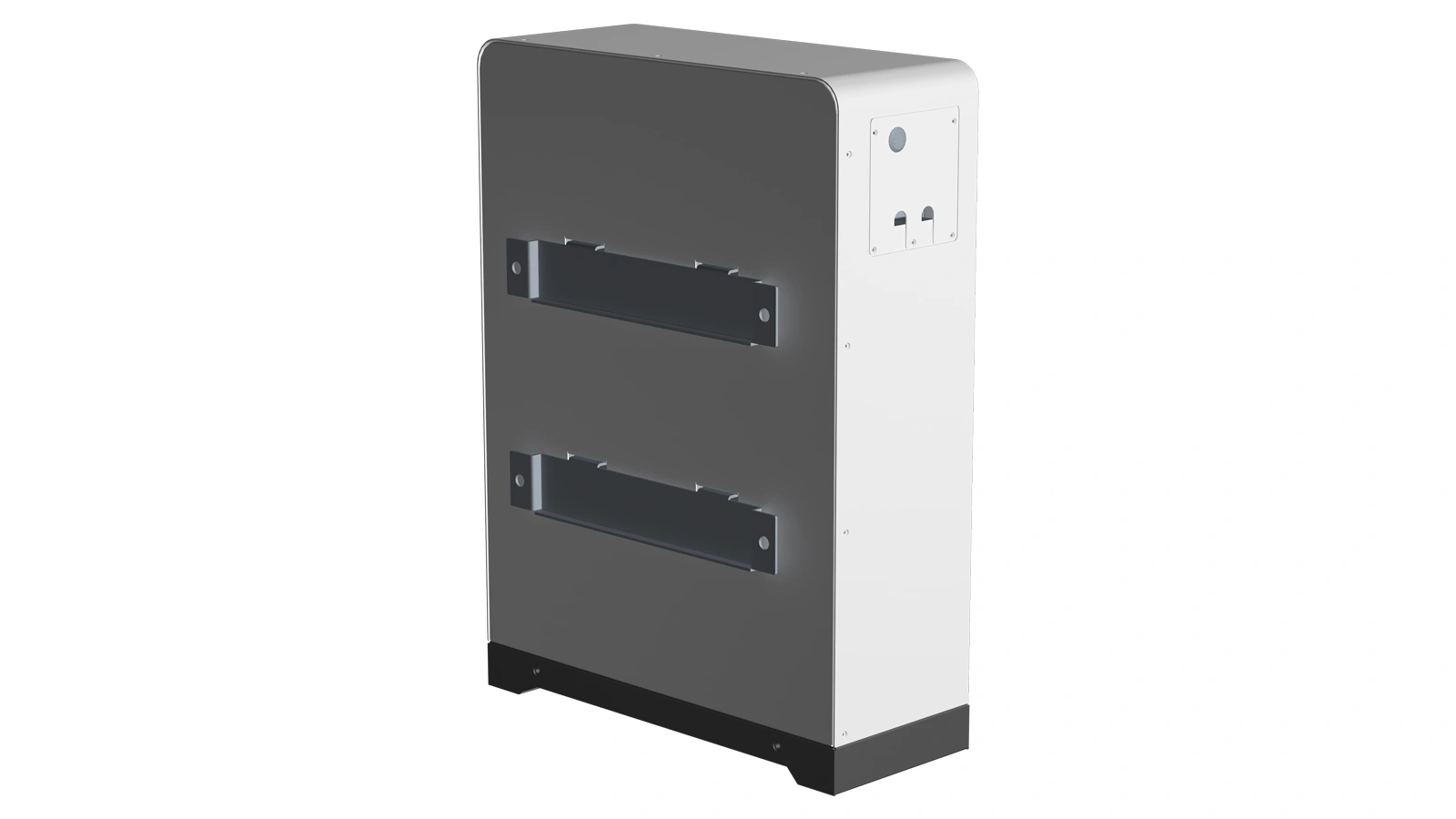

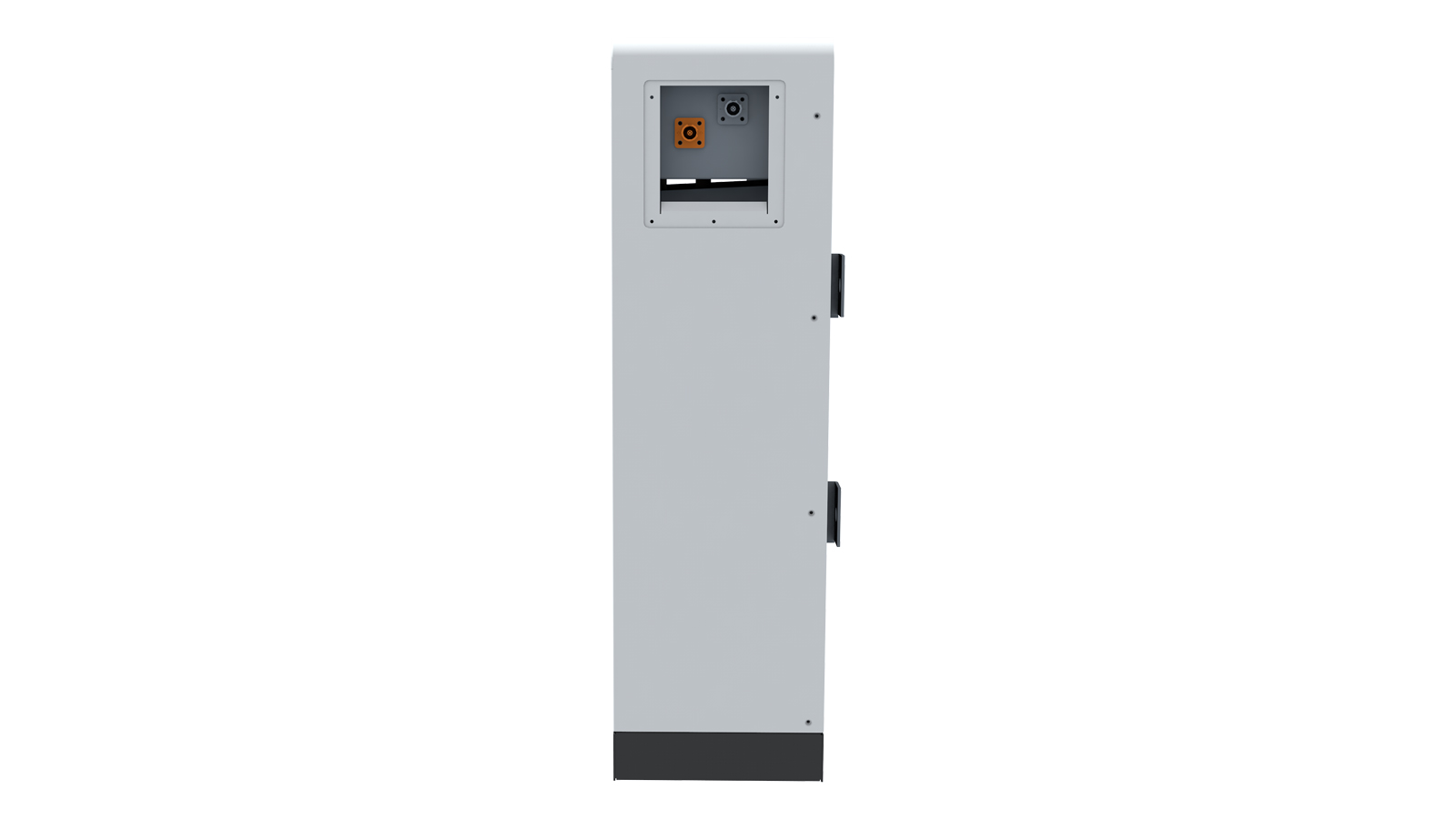

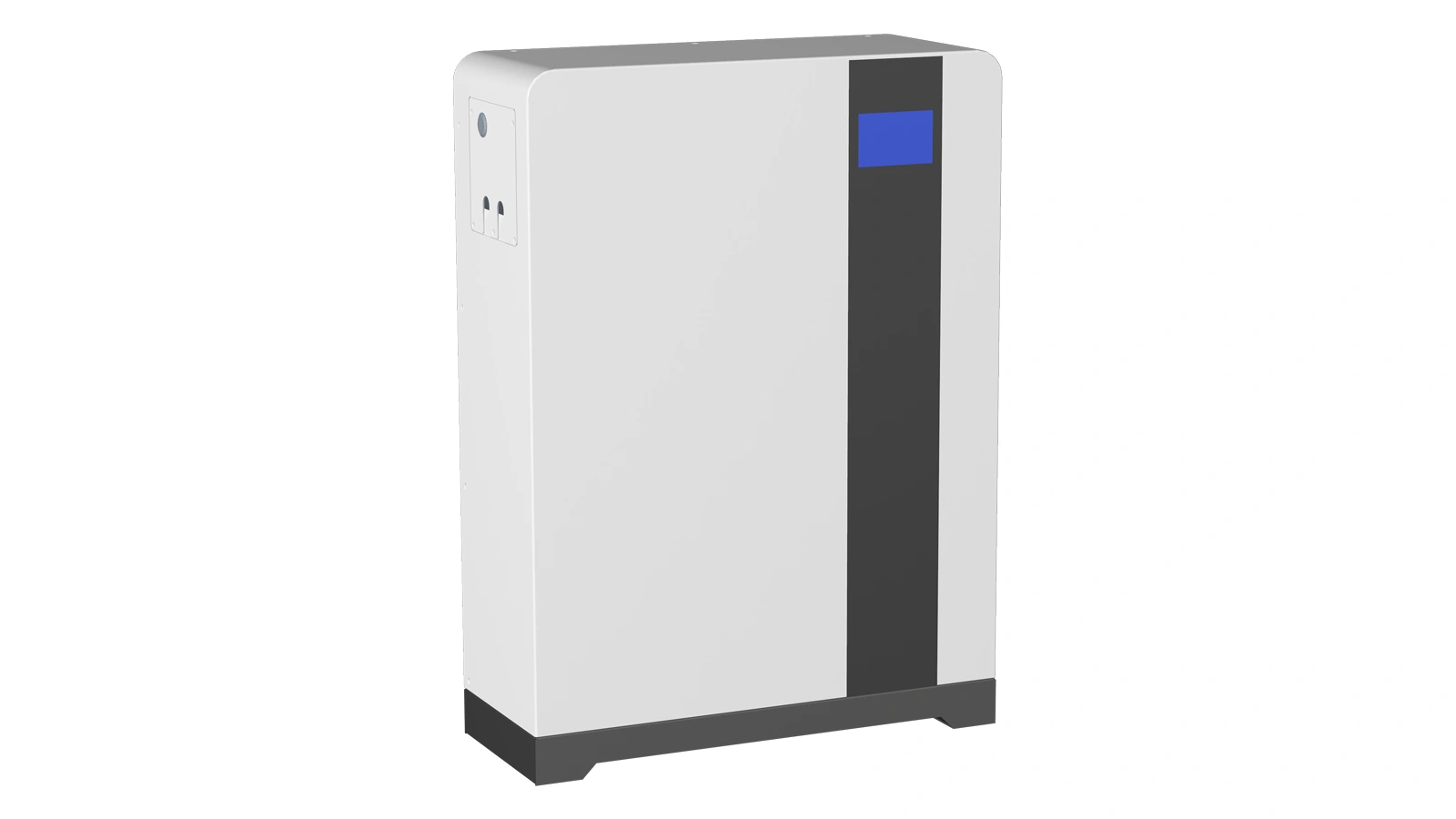

Wall mounted 51.2V 200Ah PowerWall Home-ESS 10.2kwh Lithium Battery
Thumbnail 2 Thumbnail 3 Thumbnail 4

Wall mounted 51.2V 200Ah PowerWall Home-ESS 10.2kwh Lithium Battery

  • Modular: Compact size and light weight.
  • Safty: Safe lithium iron phosphate battery cell.
  • Long lifetime: 6000 cycles, 20 years design life.
  • Easy installation: Standard design with helpful pilling ear.
  • Parallel: Support in parallels connection for higher storage capacity.
Download PDF

Certifications:

Certification 1 Certification 2 Certification 3

Powerwall is a compact home battery that stores solar or grid power. You can use this stored power to power your home devices and appliances during the day, at night, during a power outage, or when you choose to go off the grid. With adjustable power modes, you can optimize stored energy based on demand to achieve multiple goals, such as power outage protection and lower electricity bills.
When your solar system generates more energy than you need, you can store the extra energy with Powerwall and save it for later. Powerwall can also recharge from the grid when utility prices are low.
Your stored energy is available whenever you need it—during the day, at night or when an outage occurs. A Powerwall system can power your entire home, including your heater or A/C, as well as other large appliances.
Using your usage history, weather forecasts and utility price estimates, Powerwall optimizes your stored energy to power your home more efficiently, day and night. With some utilities, you can earn money by selling your energy to the grid.
Keep your home and all appliances powered during an outage. When severe weather is forecast, HEXI will automatically charge Powerwall to its maximum capacity to prepare for an outage. When an outage occurs, Powerwall will help keep your solar system running or, if using grid power, will transition your home to stored energy instantly.
Just one unit is enough to power your entire home, making whole home backup protection more affordable. Each unit comes with its own integrated solar inverter for increased efficiency, resulting in fewer parts and faster installation. This helps make multi-unit systems more affordable and makes future system expansion easier. Backup protection is only as effective as your backup system is reliable. Powerwall is designed to withstand extreme weather conditions and harsh environments. It can keep operating in freezing temperatures, high humidity, and up to two feet of water. With Heating Mode, Powerwall intelligently heats itself to maintain optimal charging and discharging performance in temperatures as low as -4°F. View Heating Mode White Paper


Wall Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 2.5kWh/5kWh/10kWh/15kWh
Modular: Compact size and light weight.
Safty: Safe lithium iron phosphate battery cell.
Long lifetime: 6000 cycles, 20 years design life.
Easy installation: Standard design with helpful pilling ear.
Parallel: Support in parallels connection for higher storage capacity.
Wide Compatibility: Compatible with most well-known brand inverters, such as Deye, GoodWe, Solis, Solax, Growatt, SMA, Victron, Luxpower, Sofar, etc.
Smart: Each module is equipped with an independent BMS system for cell balancing,overcharged,over discharged,over current or short circuit,over temperature.




Leave me message

Model HEXI-10.2K HEXI-14.3K HEXI-16K
Electrical parameters
Nominal capacity 200Ah 280Ah 314Ah
Nominal voltage 51.2V 51.2V 51.2V
Total energy 10240W.h 14336W.h 16077W.h
Depth of discharge
(90%DOD)
9216W.h 12902W.h 14469W.h
Charging voltage 57.6V 57.6V 57.6V
End voltage 46.4V 46.4V 46.4V
Maximum  current 120A 200A 200A
Maximum power 6144W 10240W 10240W
General parameters
Battery type LiFePO4 LiFePO4 LiFePO4
Working humidity ≤85%rh ≤85%rh ≤85%rh
Store humidity ≤85%rh ≤85%rh ≤85%rh
Working altitude ≤2000m ≤2000m ≤2000m
Maximum number of parallel 15pcs 15pcs 15pcs
Protection level IP54 IP54 IP54
Net weight 95.0Kg 125.3Kg 127.3Kg
Dimension 519*204*712 (mm) 519*204*854 (mm) 519*204*854 (mm)
Certificate UN38.3, CE, ROHS, IEC62619 UN38.3, CE, ROHS UN38.3, CE, ROHS, IEC62619
Circle life ≥6000 times ≥10000 times ≥11000 times
Communication port CAN,RS485, RS232
Discharging
working
temperature

-20℃ ~ 60℃
Charging working temperature
0℃ ~ 60℃


Storage temperature
12 months, ≤25℃
  6 months, ≤35℃
  3 months, ≤45℃
Warranty 5 years

Leave me message

1).Q: I need more features like Bluetooth and LED screen, I also want anti-vibration design for my residence, can I customize my battery pack?
A: Of course, just tell me what exactly you need, our professional engineer team will provide you with excellent solutions, exceeding your expectations.

2).Q: I am very sensitive to price, I am a wholesaler of battery packs, if I sell your battery packs in my city, the profit is very low, can I get a cheaper price? I can see that your competitors sell cheaper than you.
A: It is highly recommended that you compare with our competitors. In fact, there are also some suppliers who provide low-priced battery packs, but use cheap materials. Please pay attention to the cycle life and warranty, we have anti-vibration design and communication design. Maybe you know that the price of cylindrical batteries is much cheaper than square batteries. In addition, we also provide cylindrical battery solutions, please contact us directly and we will tell you more. The most important thing is that we can provide you with professional solutions according to your local market? Low profit? Don't worry, our engineer team will help you solve the problem.

3).Q: I saw the post saying that your company shows a warranty period of 5 years, so no matter what the battery pack is used for, it is 5 years?
A: No sir, maybe you know that the cycle life of the battery depends not only on the quality itself, but also on the discharge/charge rate and the actual temperature. So it is totally irresponsible if the supplier tells you the cycle life but does not talk about the actual usage. For room temperature 25℃ and 1C discharge and 0.5C charge, the cycle life of the battery pack can exceed 4000 cycles, with a warranty of 5 years, for energy storage use only.

4).Q: Can these battery packs be compatible with my inverter? Do you have a list of companies with compatible inverters?

A: Yes sir, our battery packs can be compatible with most brands of inverters on the market, please contact us and I will tell you more information.

5).What is the packaging of the battery like?

They will be in good packaging, each battery is put into thick PE foam or bag, and then put into 5 layers of sturdy carton.

6).Q: Can it be used in series or parallel?

A: Yes sir, it can support up to 4 in series or parallel use without any additional equipment.
Due to the limitation of BMS, please be aware that the default model does not support simultaneous series and parallel connection.
