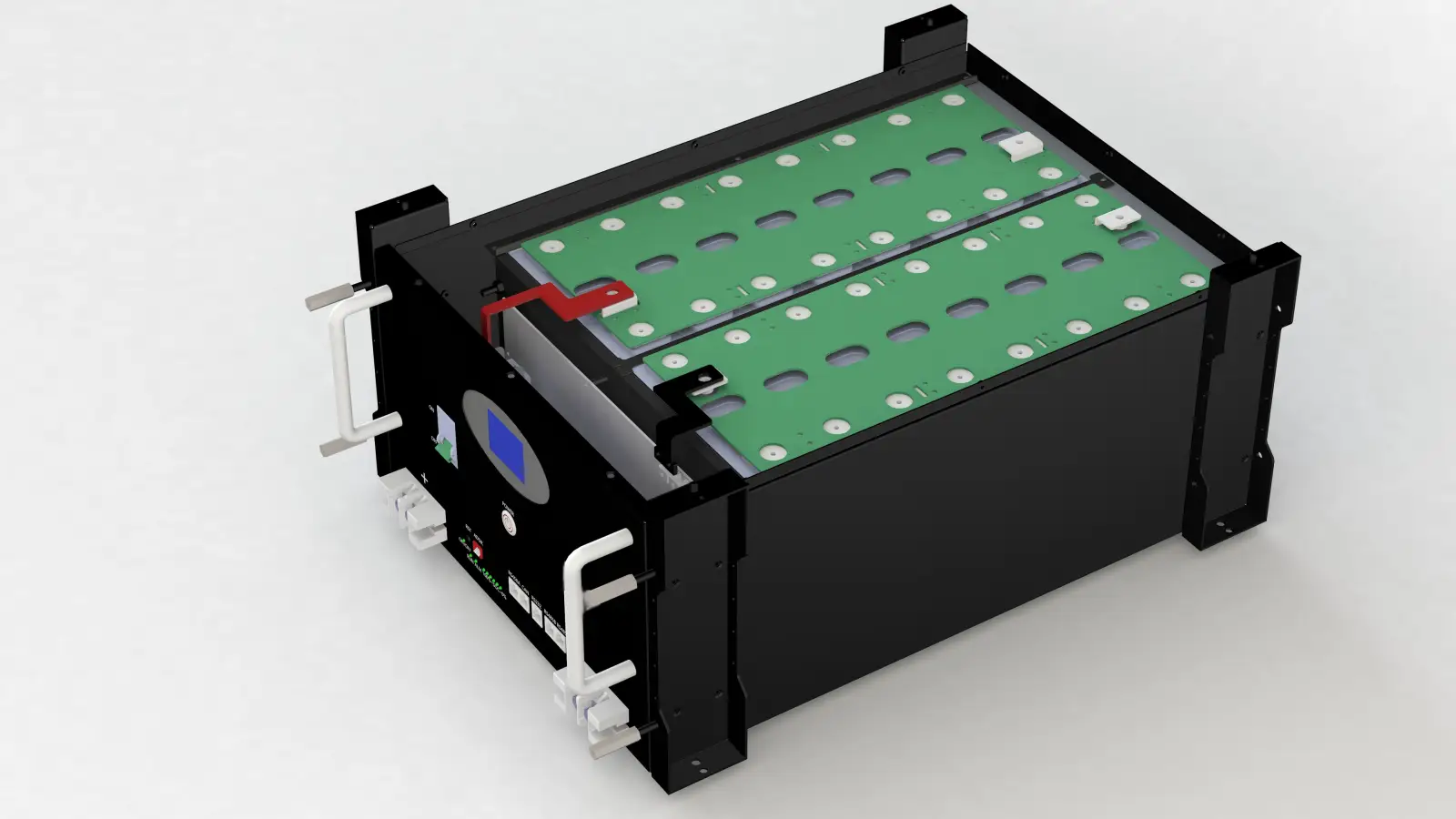

Lithium Batteries Kit | 10.24kWh | Rack Batteries | With Door | Welded
Kit Contains:
1x HEXI power (48V 24V Options)
1x (Pre-Assembled)HEXI Enclosed Battery Rack | 1 Slot
HEXI Lithium Iron Phosphate battery 51.2V (48V) 10kWh with 200AH internal BMS. Composed of (16) UL listed prismatic 3.2V cells in series which have been tested at 7,000 deep discharge cycles to 80% DoD - fully charge and discharge this battery daily for over 15 years without issue. Reliable and rigorously tested, with a 99% operating efficiency.
Included per battery:
(1) 1-foot RS485 Communication Cable
(1) Set of parallel cables per battery - 12in 6 AWG Black & Red
(1) RS485 USB Battery Comm Cable PER (6) BATTERIES (shipped separately)

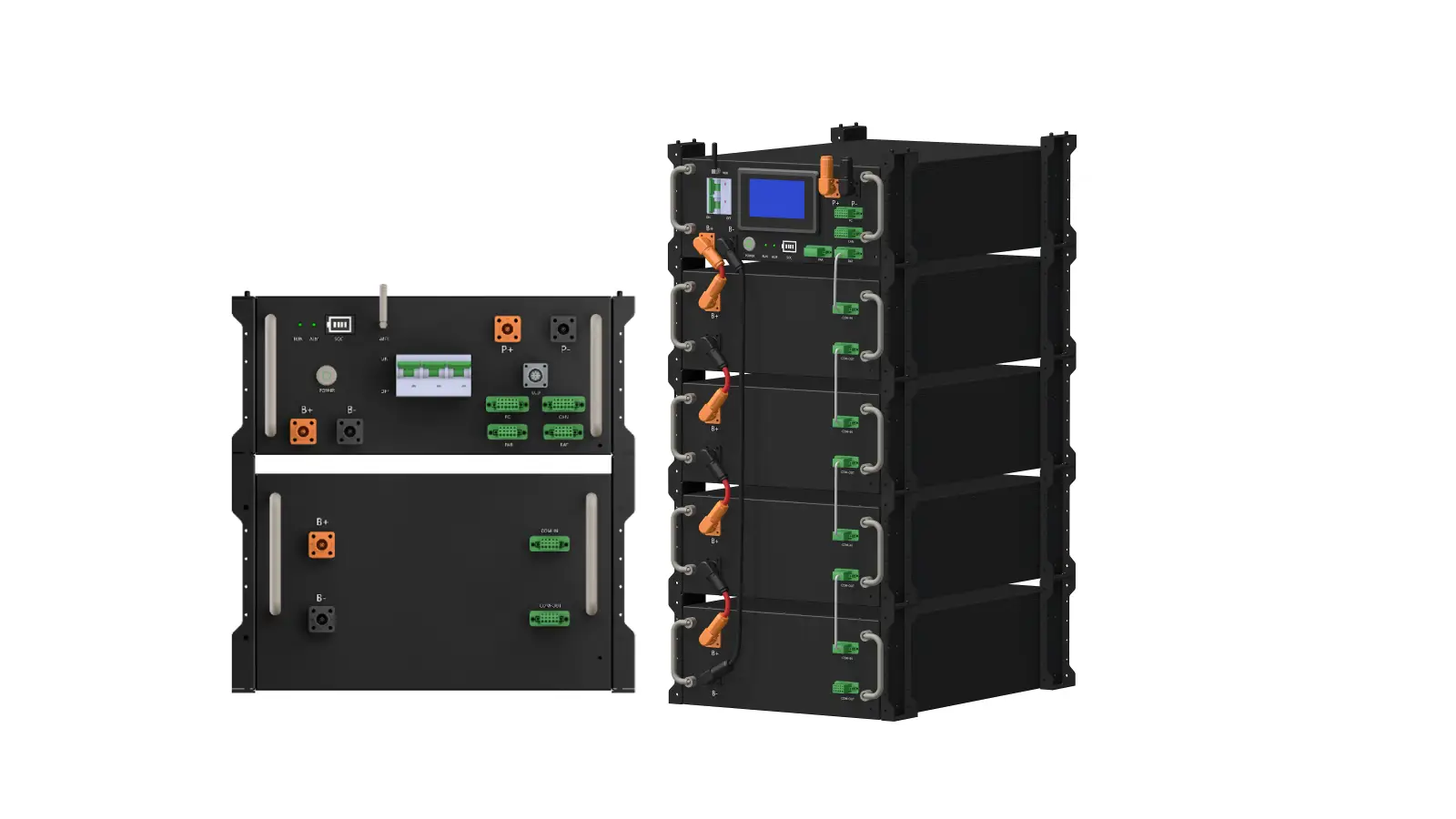

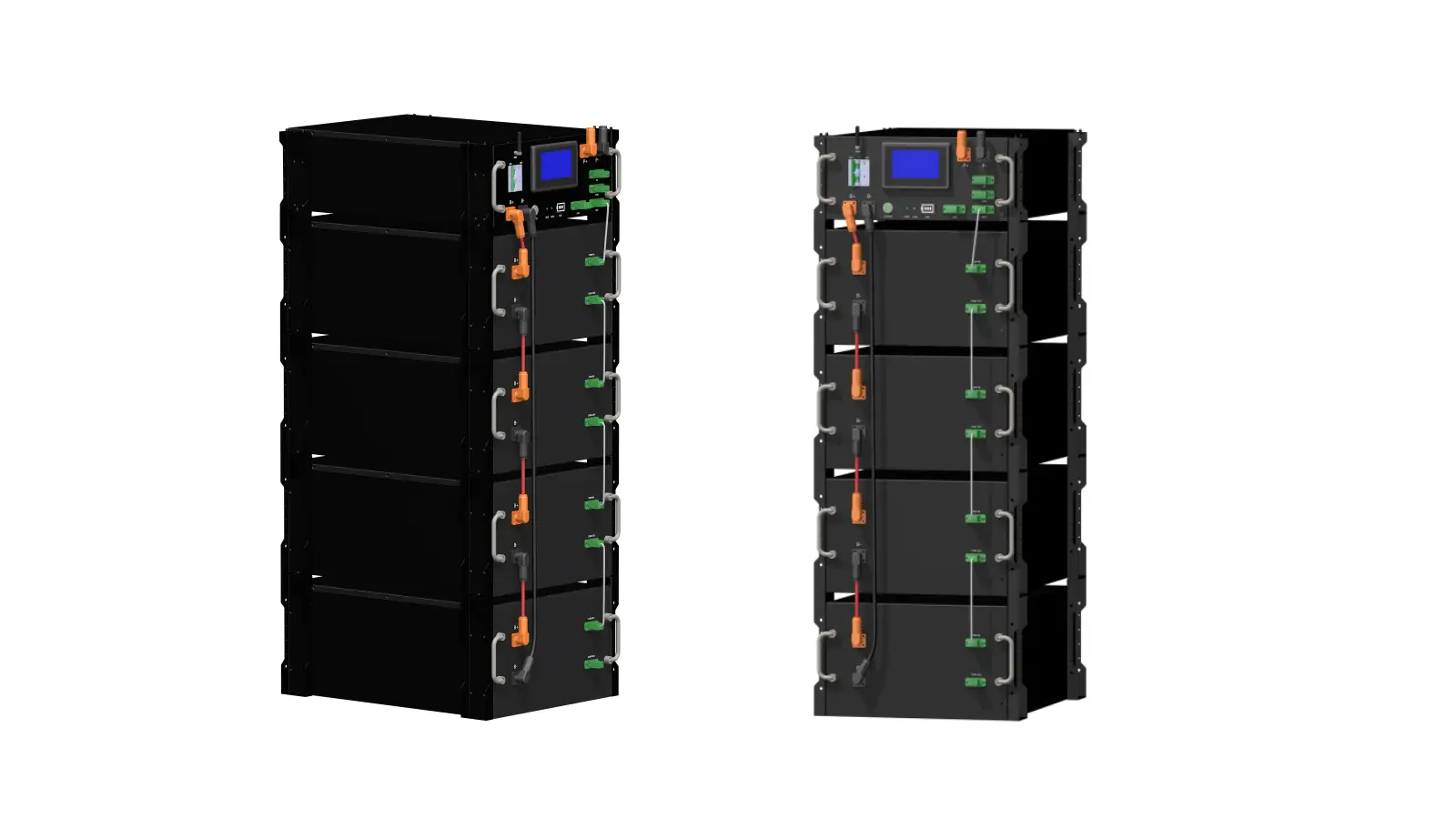

HEXI POWER 48V Lithium Battery | 48V 200AH | Server Rack Battery
48V battery maintains the sturdy design and high performance of the original model, while adding new features for an improved user experience and better system integration. This Lithium Iron Phosphate (LiFePO4) battery is composed of 16 UL recognized prismatic 3.2V cells in series, offering over 8,000 deep discharge cycles at 80% Depth of Discharge (DoD). It has a nominal voltage of 51.2V, an energy capacity of 10.24kWh, and an internal 100A Battery Management System (BMS).
The battery supports parallel connections of up to 64 units and includes a 10-year limited warranty. Improved terminal connections make it easier to attach chargers or EMP shields. The HEXI Power48v also features RS485 and CAN bus communication for broader inverter compatibility, along with a new Protocol 6 DIP switch for straightforward and convenient inverter and battery customization. Additionally, the E-Stop (Emergency Stop) rapid shutdown (RSD) functionality ensures fail-safe operation in high-risk environments, and dual on-board fire arrestors provide added peace of mind during operation.
FEATURES AND BENEFITS
Retains the robust architecture and high performance of its predecessor
Composed of 16 UL recognized prismatic 3.2V cells in series
Tested for over 8,000 deep discharge cycles at 80% Depth of Discharge (DoD)
Nominal voltage: 48V
Energy capacity: 10kWh
Charge capacity: 200Ah
New 10-year warranty
Internal 200A Battery Management System (BMS)
Equipped with BMS communication on/off switch
New Protocol 6 DIP switch for convenient inverter and battery customization
Supports closed-loop communication of up to 64 batteries in parallel, for a maximum storage capacity of 327.7kWh
Enhanced terminal connections with two positive and two negative terminals
CAN bus and RS485 ports for communication with a wider range of inverters
E-Stop (Emergency Stop) rapid shutdown (RSD) functionality for fail-safe operation in high-risk environments
Dual on-board fire arrestors for added safety during operation
Stable and safe packaging
Packing: carton + wooden box + pallet or customized
We usually provide DDP CIF sea shipping for 48V-51.2V battery pack.
Use wooden box packaging to ensure safe transportation.
Contact us for more shipping details.
DDP shipment transportation
Completed certificates: We have completed shipping certificates, such as MSDS, ROHS, CE, UN.38.3 and cargo safety transportation certification, etc.
If you have your own shipping forwarding, we can also arrange it. Just send us your forwarding address and phone number, and we will send the goods to your forwarding address.
