3.2V 280Ah LiFePO4 Battery Cell – Grade A Lithium Battery
Thumbnail 2 Thumbnail 3 Thumbnail 4

3.2V 280Ah LiFePO4 Battery Cell – Grade A Lithium Battery

  • A+ Grade, Brand new Production Date October 2024

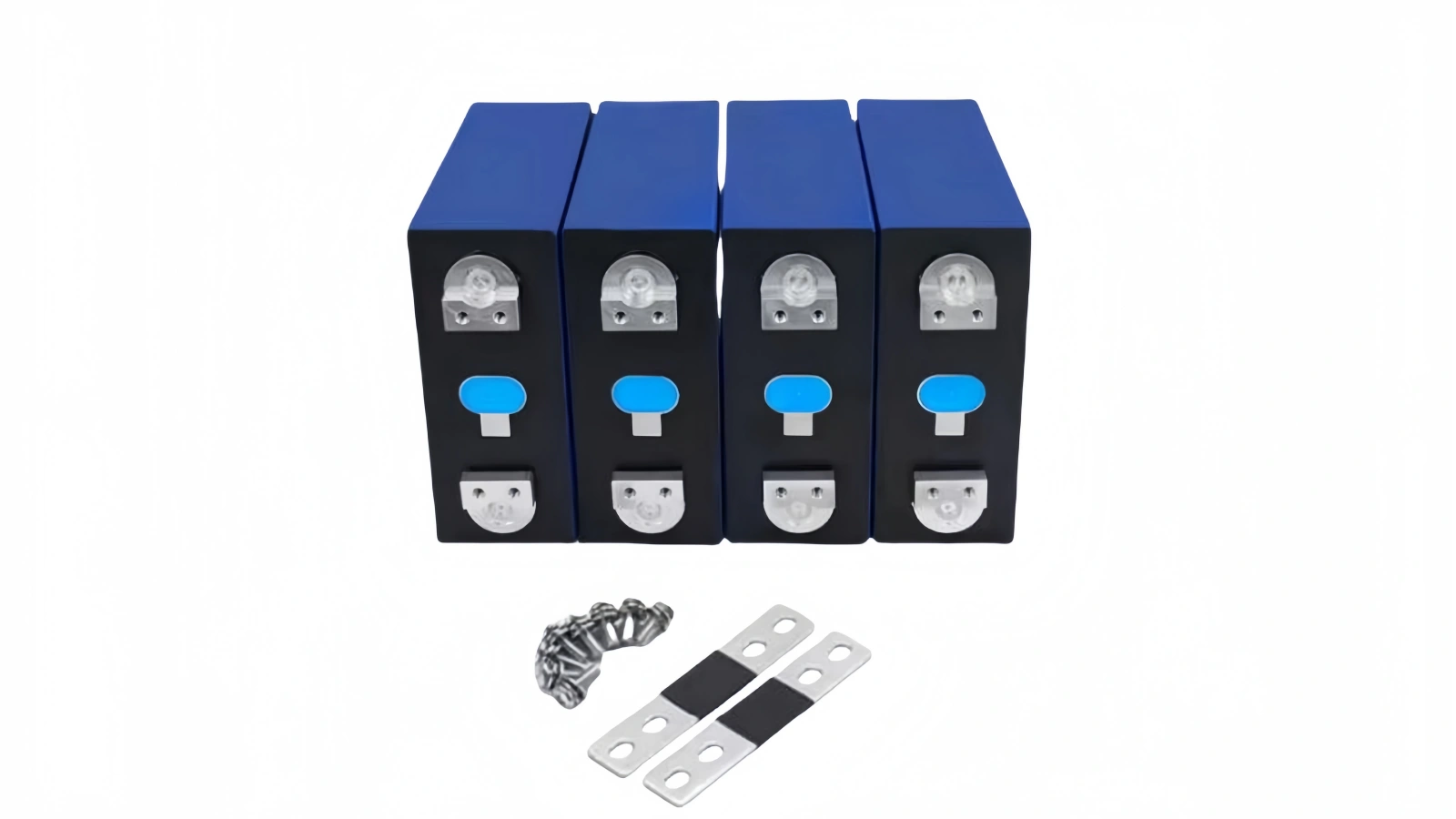

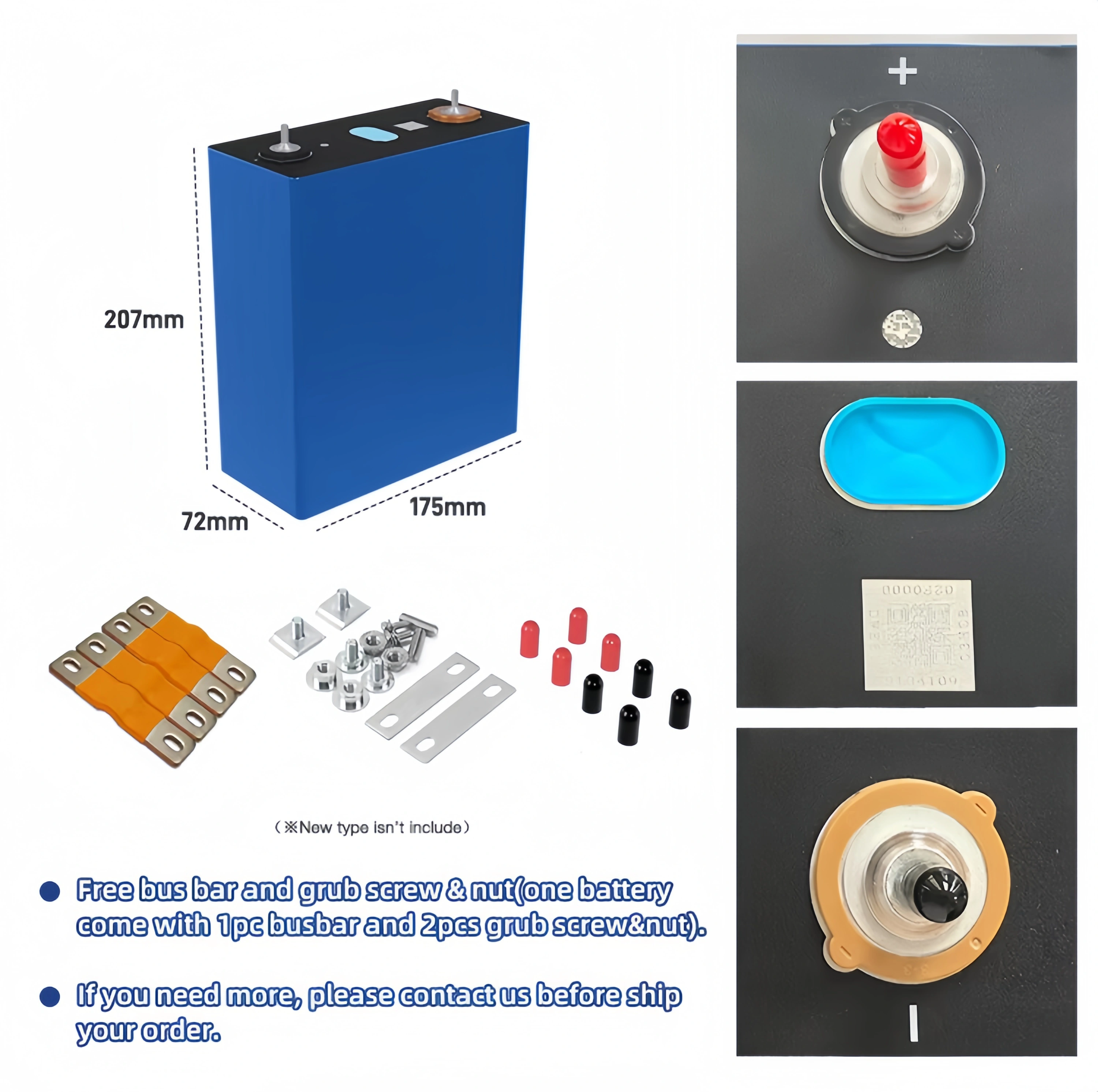

  • Free busbars and bolts
  • Free insulation sheet for 280ah cell.
  • 24H Shipped out and 5-10 years warranty.
  • Nominal Voltage: 3.2V
  • Capacity: 280Ah
  • Cycle Life: 6000+ cycles (at 80% DOD)
  • Internal Resistance: ≤0.25mΩ
  • Standard Charge/Discharge Current: 0.5C / 0.5C
  • Max Continuous Discharge Current: 1C
  • Weight: ~5.3kg

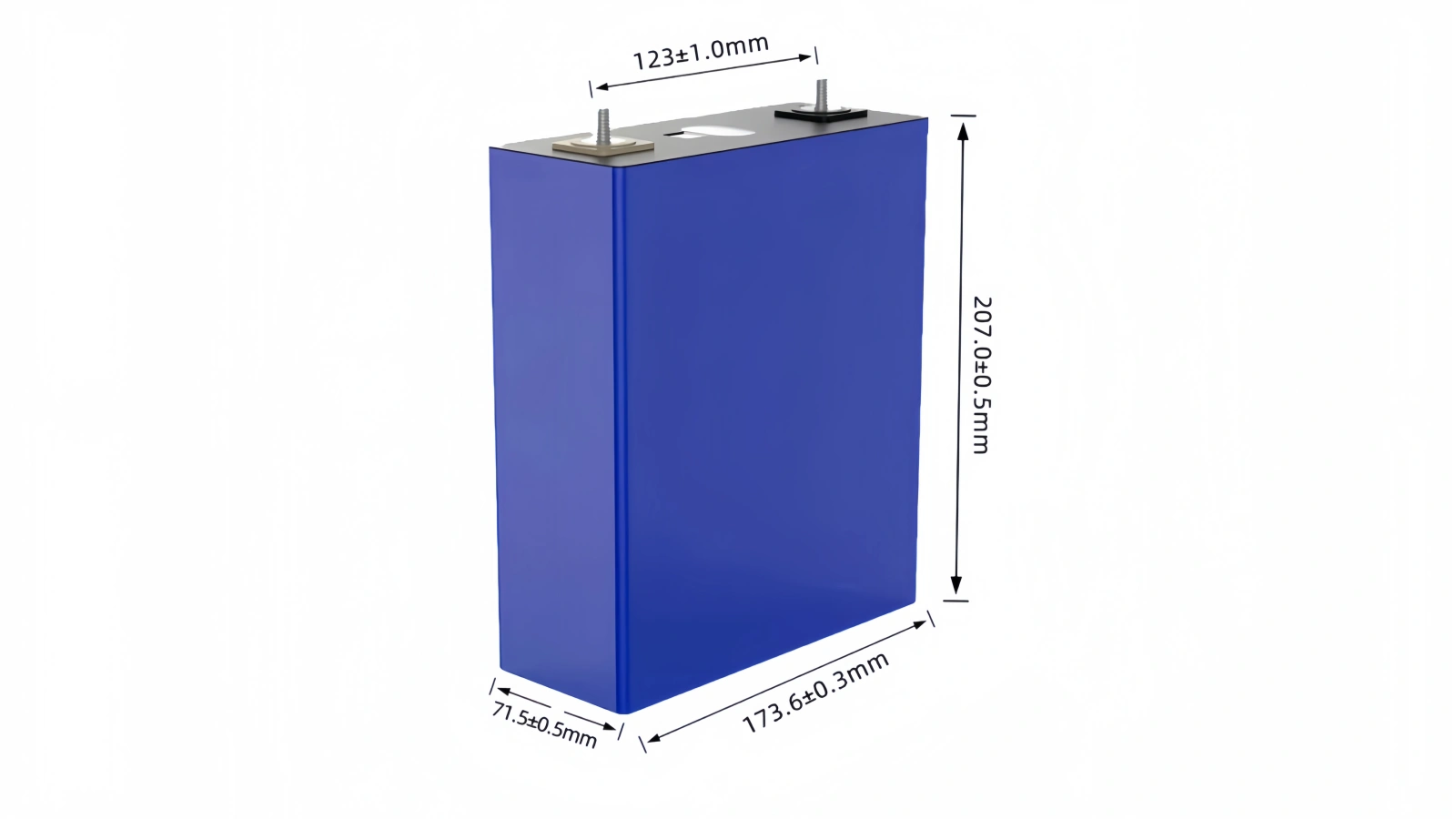

  • Dimensions: 72mm x 173mm x 207mm
Download PDF

Certifications:

Certification 1 Certification 2 Certification 3
The EVE LF280K 3.2V 280Ah LiFePO4 battery cell is one of the most sought-after lithium iron phosphate (LiFePO4) batteries, known for its high energy density, long cycle life, and exceptional thermal stability. Manufactured by EVE Energy, a leading lithium battery producer, the LF280K is designed for energy storage systems (ESS), electric vehicles (EVs), solar applications, and backup power systems.


Performance Analysis
Compared to similar LiFePO4 battery cells, the EVE LF280K offers higher energy retention, lower self-discharge, and better thermal efficiency. It maintains over 80% capacity after 6000 cycles, outperforming standard lithium-ion and lead-acid batteries in terms of longevity and total cost of ownership (TCO).
Parameter EVE LF280K Standard LiFePO4 Lead-Acid
Nominal Voltage 3.2v 3.2v 2v
Cycle Life 6000+ cycles 3000-5000 cycles 3000-5000 cycles
Energy Density ~160Wh/kg 130-150Wh/kg ~35Wh/kg
Self-Discharge Rate ≤3% per month 5% per month 0-15% per month

Application Scenarios
The EVE LF280K is widely used in multiple industries due to its high safety, deep cycle capability, and stable performance, making it a preferred choice for:

Home and Commercial Energy Storage Systems (ESS): Provides reliable backup power and supports solar energy storage.
Electric Vehicles (EVs) & Golf Carts: Delivers high energy efficiency and long lifespan for sustainable transportation.
Marine and RV Power Systems: Ensures consistent power supply with deep discharge cycles.
Telecom & Off-Grid Applications: Supports uninterrupted power in remote locations.

Why Choose EVE LF280K?
✅ High Durability: Over 6000 charge cycles for long-term reliability.
✅ Enhanced Safety: LiFePO4 chemistry prevents thermal runaway, ensuring stability.
✅ Low Self-Discharge: Ideal for long-term storage and backup applications.
✅ Superior Efficiency: >95% round-trip efficiency, maximizing energy use.
✅ Cost-Effective: Lower TCO compared to lead-acid and conventional lithium-ion cells.
The EVE LF280K 3.2V 280Ah LiFePO4 battery is an industry-leading solution for energy storage and power applications, offering exceptional lifespan, safety, and performance. Whether for solar energy storage, electric vehicles, or backup power systems, this battery delivers unmatched reliability and efficiency.

Leave me message

Model
Voltage
(V)
Capaity
(Ah)
AC Impedance Resistance (mΩ)
Cycle
Times
Weight
(g)
Dimension
H*W*T(mm)
LF50F
3.2
50
≤2.0
1500
1050±100
130*148*27
LF100L
3.2
100
≤0.5
5000
1985±100
118*160*50
LF105
3.2
105
≤0.5
4000
1980±100
196*130*37
LF160
3.2
160
≤0.5
3500
3000±100
157*174*54
LF230
3.2
230
≤0.5
4000
4140±124
174*207*54
LF280K
3.2
280
≤0.25
8000
5490±300
207*173*72
LF302
3.2
302
≤0.25
6000
5300±300
208*173*72
LF304
3.2
304
≤0.5
4000
5480+164
208*174*72
M30
3.2
306
≤0.25
10000
5600±300
208*173*72
M31
3.2
314
≤0.25
8000
5600±300
208*173*72
LF320
3.2
320
≤0.25
8000
5400±150
208*174*72

Leave me message

FAQ

Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Customized is available.

Q: What about the lead time?

A: Sample needs 7-12 days, mass production time needs negotiation.

Q: How do you ship the goods and how long does it take to arrive?

A: We usuallly ship by Fedex. It usually takes 10-15 days to arrive. Airline and sea shipping also optional.

Q: How to proceed an order?

A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.

Q: Is it OK to print my logo on product?

A: OK, Need customer provide their packaging or we make neutral packaging.

Q: Where can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we’ll regard your inquiry priority
