Deep Cycle 24V 230Ah LiFePO4 Battery BMS,5000+ Cycles
Thumbnail 2 Thumbnail 3 Thumbnail 4

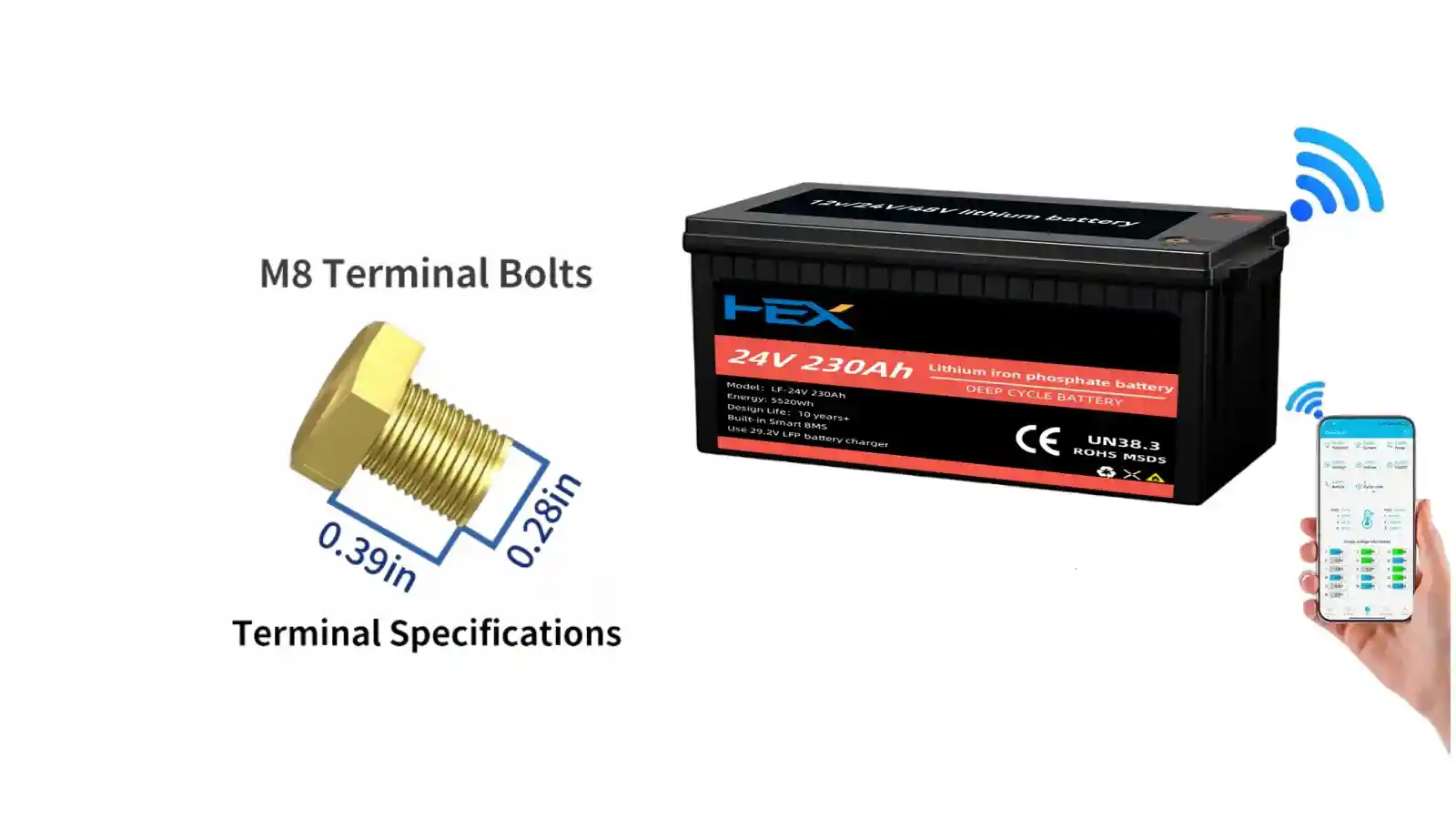

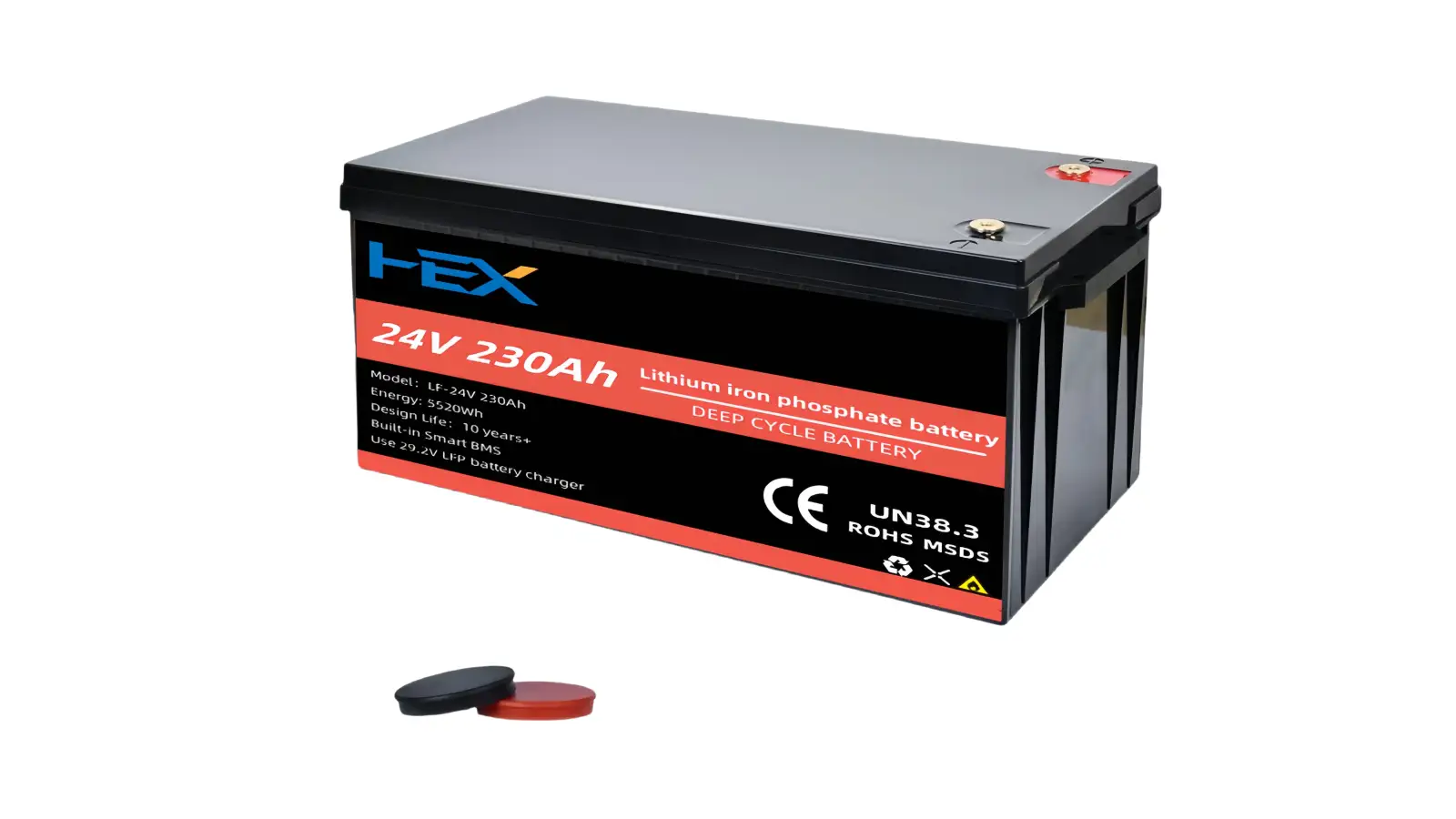

Deep Cycle 24V 230Ah LiFePO4 Battery BMS,5000+ Cycles

  • ABS shell portable screw type
  • 90% Efficient Capacity Usage
  • Built-in BMS Ensure 100% charging safety
  • Bluetooth Wi-Fi,App Intelligent Control
  • More than 5000 cycles
  • 10 years life span
  • High energy density
  • Light weight
Download PDF

Certifications:

Certification 1 Certification 2 Certification 3
Introducing the 24V 230Ah LiFePO4 Battery—a powerhouse of energy for your most demanding applications!

The 24V 230Ah LiFePO4 battery pack is a high-capacity, long-life energy storage solution designed for solar energy systems, RVs, marine applications, and backup power. Built with advanced lithium iron phosphate (LiFePO4) technology, it offers 6000+ cycles, superior safety, and high efficiency for demanding power needs.

Product Features:
Ultra-Long Lifespan: Enjoy 6000+ cycles (80% Depth of Discharge), providing 10 times the lifespan of traditional lead-acid batteries.
High Discharge Rate: Supports continuous high power output, perfect for demanding applications like solar systems, RVs, and marine use.
Smart BMS Protection: Built-in Battery Management System (BMS) protects the battery from overcharge, over-discharge, overcurrent, and short circuits, ensuring long-term safety.
Lightweight & Compact: This battery pack is only 1/3 the weight of lead-acid batteries, making it easy to transport and install.
Fast Charging & Efficiency: Quick recharge time with minimal energy loss, allowing for maximum energy utilization.
Eco-Friendly & Maintenance-Free: No toxic heavy metals (like lead or mercury), no refilling, and no memory effect—making it a greener alternative to traditional battery types.
Ideal Applications:
Solar Energy Storage: Perfect for off-grid homes, cabins, or solar installations that need reliable power storage.
RVs & Campers: Provide 24V power for inverters, lights, and appliances while traveling or camping.
Marine & Golf Carts: Waterproof, shockproof design for boats, golf carts, and other outdoor vehicles.
Backup Power & UPS Systems: Ensures your home, business, or data center stays powered during outages or emergencies.
Specifications & Customization Options Available:
This 24V 230Ah LiFePO4 battery pack can be customized for bulk orders, and we offer OEM/ODM solutions.

Leave me message

Model 24V230Ah-LFP8S
Voltage 24V
Capacity 230Ah, 5520Wh
Chemistry LiFePo4
Weight IP65(48kg)
Dimensions 635*244*221 mm
Life Cycles 5000 @ 80% DOD
BMS Yes (Internal)
Max Charge Voltage 29.2v
Max Charge Current 100A
Max Discharge Current 100A
Peak Current (3S) 100A (4S)
Operating Temperature -20~60℃
-4℉~140℉
BMS temperature protection
Charge Cut-off @ 0 ℃
Discharge Cut-off @ 60℃
Working Condition
Charging:  0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity
Discharge:  -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity
Storage:    0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity

Leave me message

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.


Q2. What about the lead time?

A. Sample needs 7 days, mass production time needs 5-7 weeks, it depends on order quantity.


Q3. Do you have any MOQ limit?

A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.


Q4. How do you ship the goods and how long does it take to arrive?

A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.


Q5. How to proceed with an order?

A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.


Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q7.Which certificates do you have?

A:We have CE/FCC/ROHS/UN38.3/MSDS/IEC/CB ...etc.


Q8.Different grades of A+, A- and B grade LFP cells?

A:A+ Grade: Best for high-performance, 16s 51.2V systems and above; unmatched quality and longevity.
B Grade: Affordable option for low-demand applications but with lower reliability and lifespan.
Key Advice: Select cells based on application needs and ensure a robust warranty from a trusted supplier.
