LiFePO4 Lithium Battery 12v 200Ah with BMS and LED indicator
Thumbnail 2 Thumbnail 3 Thumbnail 4

LiFePO4 Lithium Battery 12v 200Ah with BMS and LED indicator

  • Rade A quality, brand new with original factory QR code.
  • 5000 times cycle Life. 5 years  ,Life-long technical support
  • Higher battery energy density
  • Low Discharge rate & fast Charging
  • Match Multiple Brands Inverter
  • 100% safety, extreme safety test
Download PDF

Certifications:

Certification 1 Certification 2 Certification 3
12V 200Ah LiFePO4 batteries support series and parallel. Up to 4 batteries in series or up to 4 in parallel for 12V, 24V, 36V and 48V systems. 24V and 48V lithium batteries only support parallel up to 4 units.
Key Features :
Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery ,
helping to minimize replacement cost and reduce total cost of ownership
Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
1.High energy desity with light weight , 1/3 weight of lead acid battery
2 . High and low temperature resistance
CTS products are outstanding in high temperature and cold areas, and can be used efficiently in the temperature range of - 20 ℃ to 65 ℃.

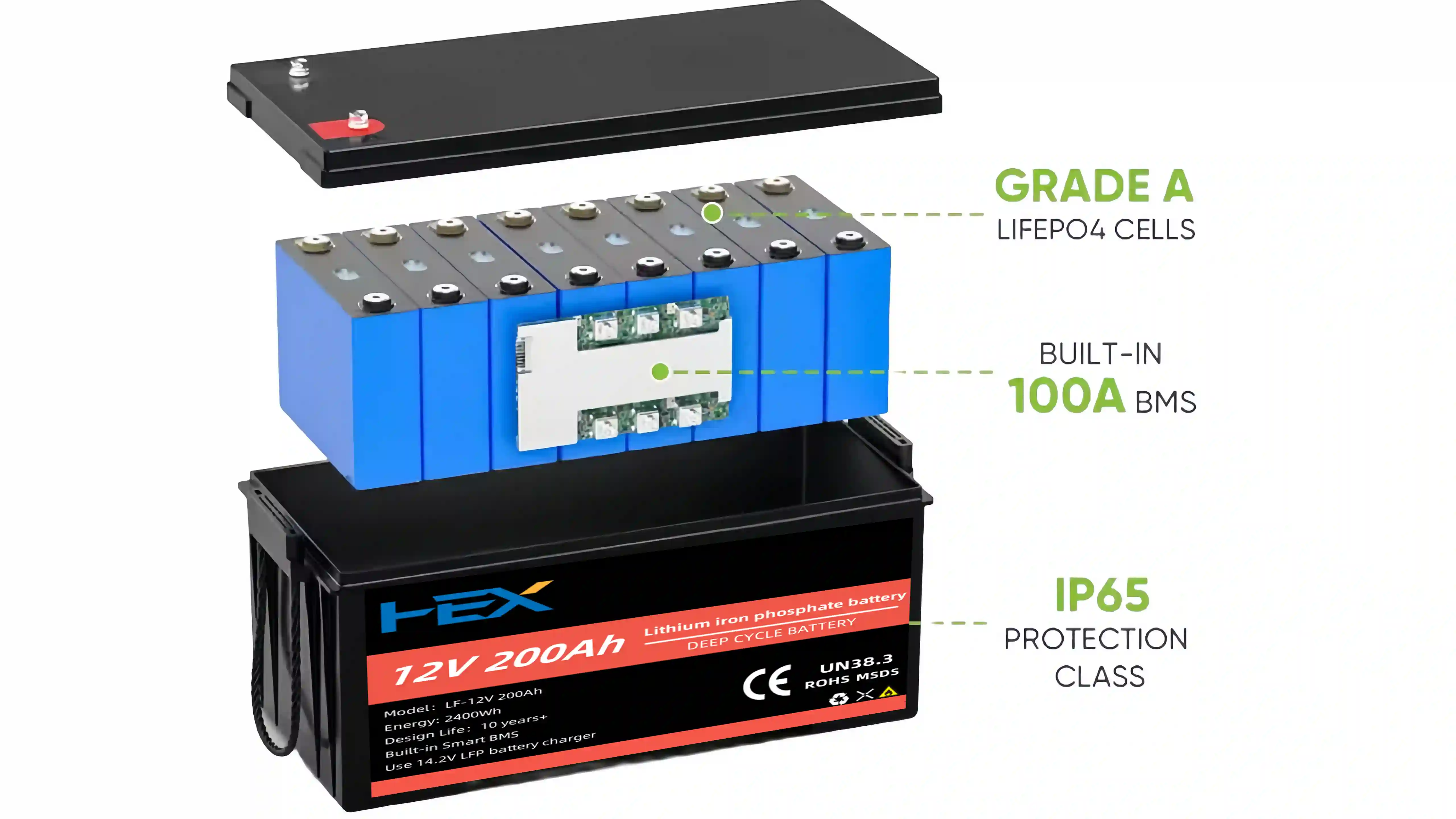

3.Security & Intelligent battery management system
LiFePO4 batteries have very high thermal and chemical stability. They have built in BMS which including over charge, over discharge, over-heating and short circuit protection.

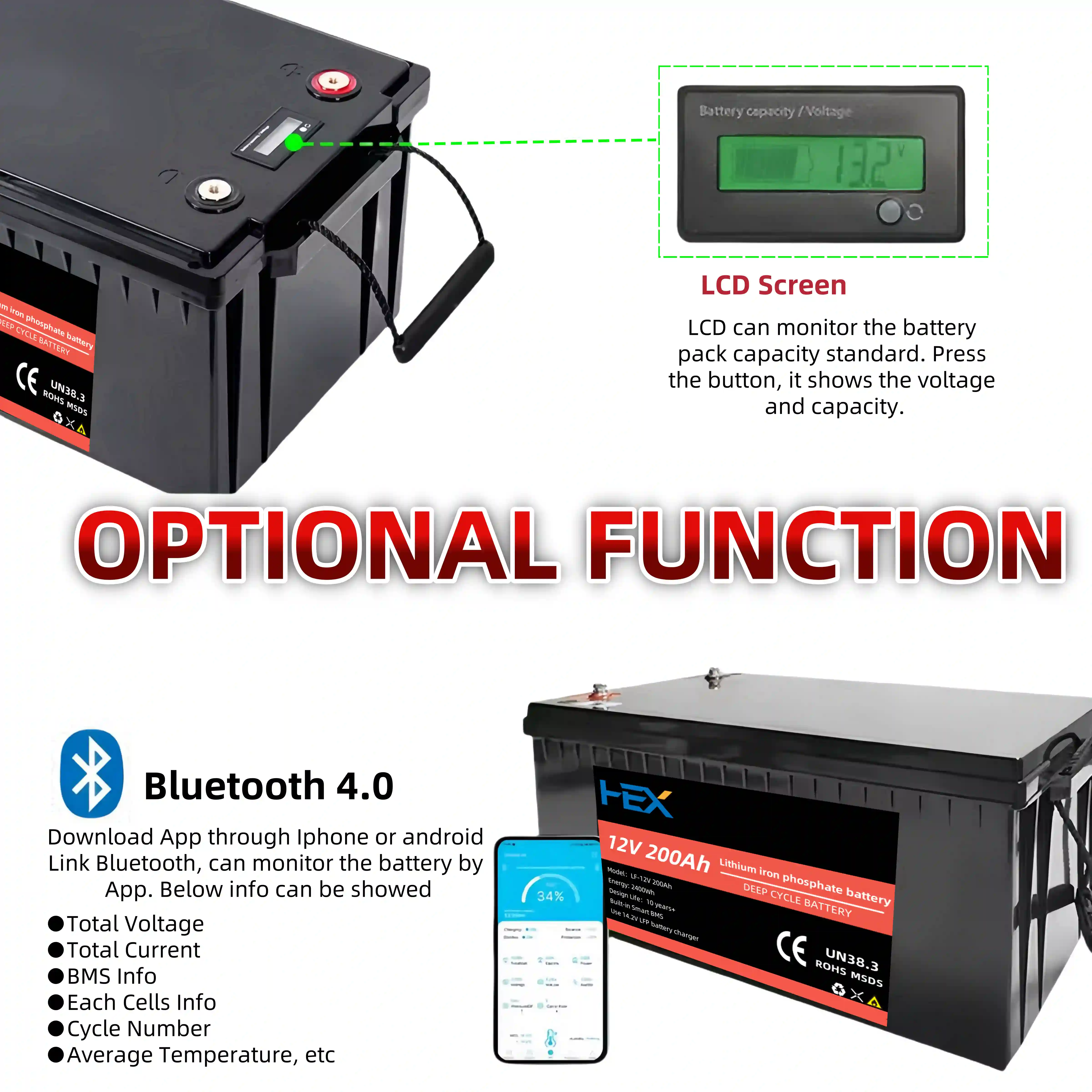

4.Real time monitoring
Install the APP on your mobile phone, connect the battery pack through Bluetooth, then you check the battery status and data,These batteries are equipped with a Bluetooth monitoring system, so you can track important data like voltage of each cell, temperature, charging current, discharging current, state of charge and many more on your mobile phone in real–time. Just download the android or iPhone app and you are ready to go.Another advantage of this battery is that it has the low temperature disconnect. If you live in a cold place where the temperature goes often below 0 degrees Celsius the BMS will prevent charge and discharge below that temperature so that the battery will not degrade faster.

5. Source Factory & Direct Distributor:
We are direct distributors for EV, CATL, LISHEN, CALB, and REPT batteries.
All batteries are 100% original Grade A and brand new.
We maintain weekly fresh stock with newly produced cells, ensuring long-term supply for your projects without worrying about stock availability.

6. Guaranteed Quality Service:
We guarantee 100% tested batteries, ensuring strict testing before shipment with matched voltage and IR.   We welcome QC checking and online video checking before shipping.

7. Fully Warranty Service Guaranteed:
BASENGREEN has self-operated overseas warehouses and repair centers in Poland and Germany, providing 100% product usage guidance and technical support.   For products confirmed to have non-artificial quality issues, we offer complete after-sales service, ensuring worry-free shopping for you.

8. OEM / ODM Supported:
With an experienced team of energy storage structural and software engineers, we offer flexible customization services.  Additionally, our marketing team provides one-on-one support, offering a full range of marketing solutions and services to help you expand your business in local markets.
9.DIY Battery Box
HEXI 12V BATTERY PACK
Product
Model
Specification

Battery Pack
BG-12100
12V 100Ah with BT
more
Battery Pack
BG-12200
12V 200Ah with BT
more
Battery Pack
BG-12300
12V 300Ah with BT
more
HEXI ASSEMBLED 48V BATTERY
Product
Model
Specification

Rack Mounted Battery
BR-RM-LV
6kWh 51.2V 120Ah
more
Wall Mounted Battery
BR-WM-LV
10kWh 51.2V 200Ah
more
Wall Mounted Battery
BR-OW-LV
11.7kWh 51.2V 230Ah
more
Wall Mounted Battery
BR-OW-LV
14.3kWh 51.2V 280Ah
more
Wall Mounted Battery
BR-OW-LV
15kWh 51.2V 300Ah
more
Shipping and delivery time
Ship from
Logistics type
Delivery time
China warehouse
DDP by sea /train
35-50 working days
DDP : The shipping cost and all import cost for destination are included in the price and you do not have to worry about anything
and pay extra fees.
Use high hardness custom sponge to strengthen the battery
 5 layers of dangerous goods export corrugated carton
 Positive and negative with insulation
 We will label test data on each cell before delivery
 If customer have requirement, we can provide Wooden Packing for shipping.
 Completed Certificate: We have completed certificate of shipping, such as, MSDS, ROHS, CE, UN.38.3 and Certification for Safe Transport of Goods, etc.
 ------------(Click here) to get more details------------------


Leave me message

Model
LP100AH/12.8V
LP200AH/12.8V
Cell chemical formula
LiFePO4
Maximum continuous discharge current
100A
Available capacity
1280Wh
2560Wh
Rated voltage
12.8VDC
Voltage range
10V-14.6VDC
Maximum output power
1280W
Maximum charging voltage
14.6V±0.2VDC
Recommended charging voltage
14.4V±0.2VDC
Recommended charging current
50A
100A
Number of cycles (standard charge anddischarge at room temperature)
≥5000 times
Low power mode
≤45uA
Waterproof grade
IP64
Battery discharge depth (DoD)
≥95%
Modules connect
1-5
Terminal type
M8
Operating temperature range
Discharge:-10℃-+50℃; Charge: +0℃-+60℃
Storage temperature
>1 month,0-35°; <1month,-20-45°C
N.W
11kg
20kg
L*W*H
332*173*217mm
522*238*222mm

Leave me message

Q1.Are you a factory or a trader? May I visit your factory?
We are the source manufacturer of lithium battery packs, you are welcome to visit the factory online/offline.

2. Does the battery pack be equipped with LCD display, also support Bluetooth communication?
Yes. Supports LCD display and Bluetooth communication. We also can provide customers with Bluetooth APP (Android & iPhone) to view battery pack data in real time.

3. Can the battery pack match the charger? What is the output and input port of the charger?
We can match the charger for you, and the charger input/output model is made according to your requirements.

4. Does your battery pack include BMS?
Yes, our battery pack include BMS. BMS have OVP/UVP/OCP/OTP/UTP/SCP protection functions.

5. Can it be series or parallel for use?
Yes. it can support max. 4 in series or 15 in parallel connection for use ( 12V series ).

6. What kind of certificates your products have?
CE,FCC,RoHS,PSE,UN38.3,MSDS etc,which is able to satisfy mostcountry's importing requirements.

7. Is OEM/ODM battery pack available?
Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.

8. What is the payment method?
100% payment for sample orders; 30% deposit for bulk orders, 70% balance before shipment.

9. What about the warranty? How can we guarantee quality?
Warranty for 5 years. Always a pre-production sample before mass production. All products will undergo charge and discharge aging test and final quality inspection before shipment.

10. What about the delivery time and shipping?
Some products are in stock. Supports sea, land, and air transport, and provides DDP services. Use International Express (UPS/FEDEX/DHL) to deliver goods within 7-10 days.
