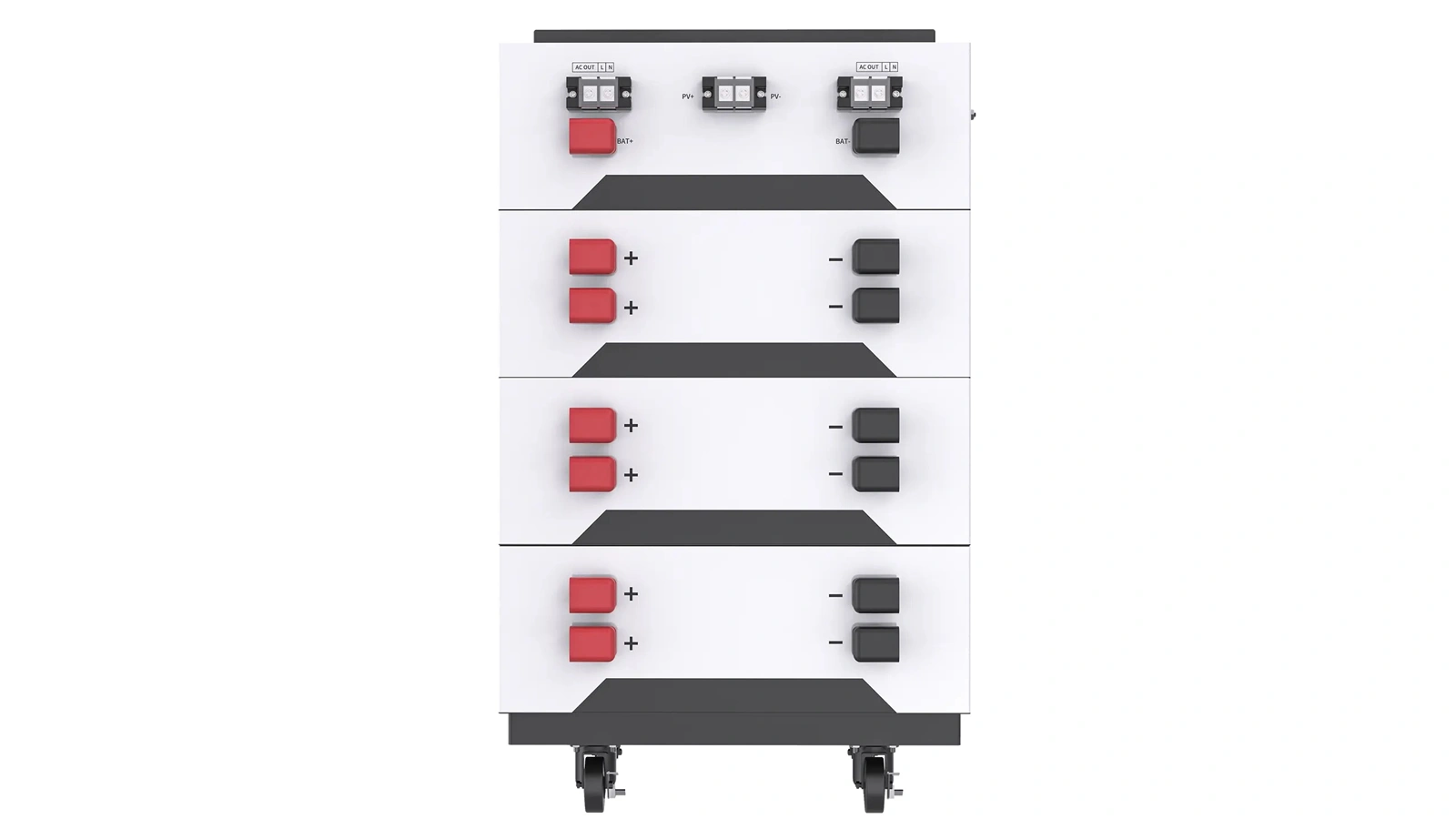

Liifepo4 48V 100Ah Energy Storage Power Solar 5Kwh Stacked Battery
Thumbnail 2 Thumbnail 3 Thumbnail 4

Liifepo4 48V 100Ah Energy Storage Power Solar 5Kwh Stacked Battery

  • Quick Installation
  • 10 Years Warranty
  • Up to 20 parallel-800kWh
  • Max.400V
  • LCD touch screen
  • High Efficiency
Download PDF

Certifications:

Certification 1 Certification 2 Certification 3
Why Choose Our ALL-IN-ONE Battery Pack?

Why Choose Our ALL-IN-ONE Battery Pack?

  1. All in one design: energy storage machine is equipped with a 5-10KW inverter, solar charger, and 5kwh lithium iron phosphate battery cabinet for combination, its flexibility to plug-and-play installation.
  2. 5000W Solar Inverter: it is pure sine wave outputs, converts 48V DC into 120V AC output, 80A MPPT solar controller MAX 500V PV input, it is applicable for household appliances, power tools, and other AC loads.
  3. Battery with intelligent BMS: it is equipped with 2pcs batteries, a single battery is 5.12kWh,6000 cycles 80% DoD. You can use 4 batteries in parallel at the same time and provide a maximum of 20kwh for your use. The lithium iron phosphate batteries with BMS high performance in energy storage.
  4. Multi working modes: A variety of charging methods, which can be charged with photovoltaic or grid power, or both at the same time, a variety of different power sourcing, the appliance can be powered by solar /grid /battery.
  5. Top Brand And Warranty Guarantee: Buy with Confidence! HEXI is a professional manufacturer in the powerful energy field for over 10 years, customer service in USA. 10 year warranty guarantee, and Lifetime tech support.  CE UL1641(battery cell), UN38.3,MSDS

       Compact Size:
       Ultra-thin wall-mounted home battery design, beautiful atmosphere, perfectly integrated into the home environment
       Built-in stable BMS with overcharge, overdischarge, overcurrent, high and low temperature protection functions

       Long service life and high reliability:
      15+ years long life design@25°C ;
      Adopt approved grade A cells to ensure high safety and premium performance of the battery;
      High operational reliability.

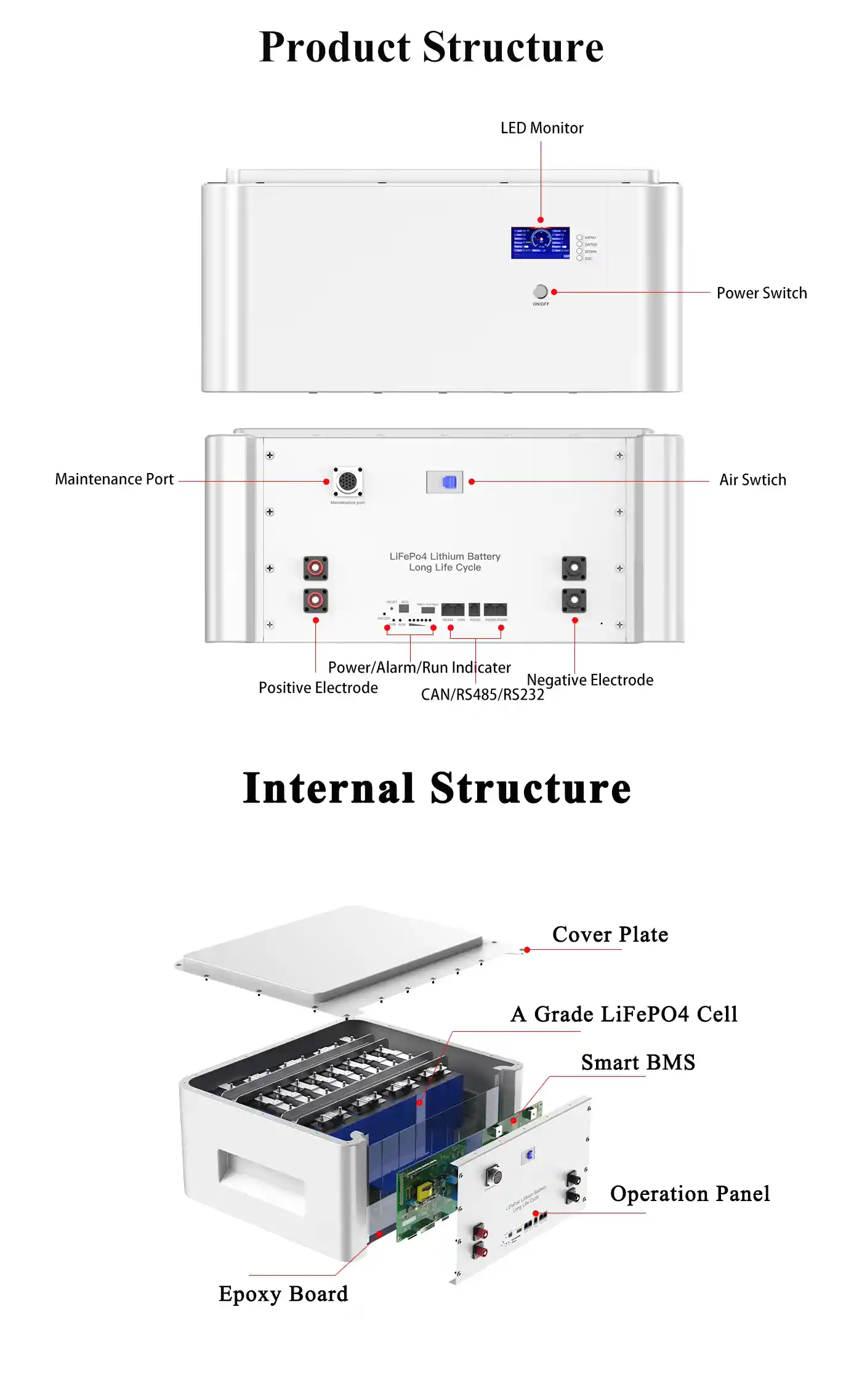

      Modular design:
      Parallel connection available for flexible
      Uniquely designed view window, beautiful and generous.
      system capacity extension
      LED strip shows battery capacity and battery status in real time



Applications:

  • Outdoor Adventures: Perfect for camping, hiking, and road trips.
  • Emergency Backup: Reliable power source during blackouts or natural disasters.
  • Daily Use: Keep your essential devices charged at home, work, or on the go.

Wide compatibility:
Fully compatible with most inverters on the global market,such as SMA, SolarEdge, Sungrow, Victron Energy, Schneider, Growatt, EverExceed, Ginlong, Sofarsolar, SolaX,East, Deye, etc.'


Stable and safe packaging
Packing: carton + wooden box + pallet or customized
We usually provide DDP CIF sea shipping for 48V-51.2V battery pack.
Use wooden box packaging to ensure safe transportation.
Contact us for more shipping details.
DDP shipment transportation
Completed certificates: We have completed shipping certificates, such as MSDS, ROHS, CE, UN.38.3 and cargo safety transportation certification, etc.
If you have your own shipping forwarding, we can also arrange it. Just send us your forwarding address and phone number, and we will send the goods to your forwarding address.


Leave me message

All-in-one Energy Storage System
Model No HEXI-AIO-10.24KWH HEXI-AIO-15.36KWH HEXI-AIO-20.48KWH HEXI-AIO-25.6KWH
Nominal Capacity 10240Wh 15360Wh 20480Wh 25600Wh
Weight (with packing) 132KG/150KG 182KG/203KG 232KG/255KG 282KG/307KG
Dimension WxDxH (mm) 556*520*750 550x500x795 550x500x955 550x500x1115
Nominal Voltage 51.2V
Nominal Capacity 200Ah 300Ah 400Ah 500Ah
Max. Cont. Charge Current 2pcs pack 3pcs pack 4pcs pack 5pcs pack
Charge Current (-20 to -10 ºC) ≤0.05C
Recommended Charge Voltage 56V-57.6V
BMS Charge Voltage Cut-Off 58.4V (3.65±0.025vpc)
Reconnect Voltage 54.6V (3.34 ±0.05vpc)
Case Material Metal
Max. Continuous Discharge Current 100A
Display SOC Status Indicator, LED Indicator
Cycle Life ≥6000 Times (80% DOD)
Support Inverter Brand Victron、Pylon、Deye、SMA、Growatt、Goodwe、MPP、Voltronicpower、Pchne、Sofarsolar、Megarevo、Tbbpower、ARUN、 Schneider
Warranty 10 Years

Leave me message

Frequently asked questions

What are Home Solar Stacked lithium-ion batteries and how do they work?
Lithium-ion batteries are rechargeable energy storage devices that use lithium ions moving between the anode and cathode to generate electrical energy. They are considered dry-cell batteries due to their non-liquid electrolyte, offering high energy density and efficient power storage.

What are the key benefits of lithium-ion batteries compared to other battery types?
Lithium-ion batteries, including lithium-ion rechargeable batteries and lithium-ion golf cart batteries, offer numerous advantages such as higher energy density, longer lifespan, faster charging, and lower self-discharge rates. They are lightweight and require minimal maintenance, making them ideal for portable and high-performance applications.

How long do lithium-ion batteries typically last and what factors affect their lifespan?
Lithium-ion batteries can last from 5 to 10 years, depending on usage patterns, environmental conditions, and proper maintenance. Typically, they endure 500 to 1,500 charge cycles. Optimal performance is achieved with proper temperature management and charging habits.

What are the best practices for storing and maintaining lithium-ion batteries?
Store lithium-ion batteries in a cool, dry place at around 50% charge to maximize capacity retention. Regularly inspect for physical damage, use appropriate chargers, and avoid deep discharges to ensure long-term performance.

Can the battery pack be compatible with the inverters on the market?
Yes sir, our packs are compatible with more than 20 inverter brands on the market including Victron, Goodwe, Solis, Growatts, Voltronics, Deye and other famous brands.

Does the product have a built-in BMS?
Yes, intelligent BMS including JBD/PACE/SmarTec built-in to ensure batteries are under smartly managed.

 What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Please feel free to contact us for Price, Packing, Shipping and Discount.
